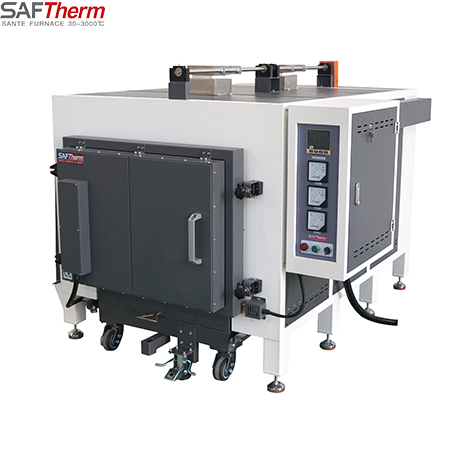

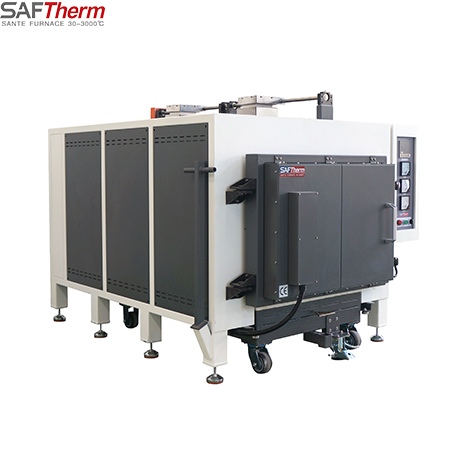

1200°C Manual Trolley Furnace

  • Model No. :STT-290-13
  • Chamber Volume:290L
  • Continuous Temp. :1200℃
  • Max Temp.:1300°C
  • Power Supply:380V/30kw
  • Heating Element: High Quality Alloy Resisance Wire(HRE)
  • Temp Precision:±1°C
  • Thermocouple: N type
  • Advantage
  • Related Cases
  • Related Products
Free Quote

Description

The 1200C Manufal Trolley furnace is mainly developed for the sintering of large-scale materials or small-scale production applications. High-quality furnace materials and new construction technology for large-capacity furnaces, stable temperature control and intelligent walking trolley system can ensure the reliable quality of sintered products. It is used in the fields of new materials such as metal materials, ceramic materials, nanomaterials, and semiconductor materials.

Features

  1. Multi-layer heat insulation design of refractory materials, multi-layer lightweight refractory brick lining or ceramic fiber lining with strong structure, high-strength stacking and splicing, no asbestos components, small heat loss and low energy consumption.

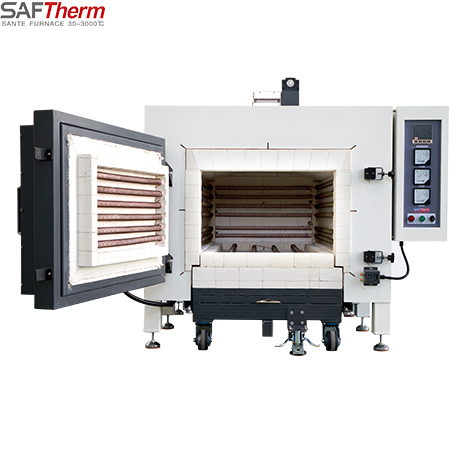

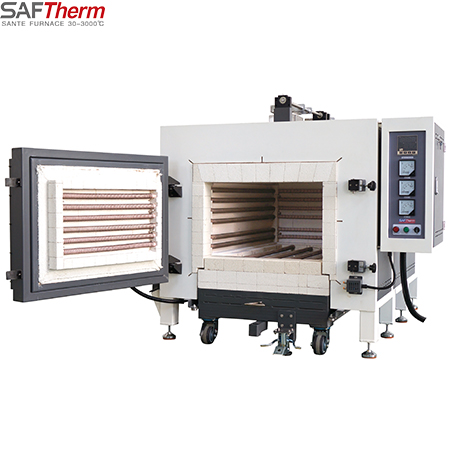

  2. Heating on three sides (left, right and bottom side) to achieve good uniformity in the furnace.
  3. The silicon carbide bottom plate covers and protects the bottom of the furnace, which has high mechanical strength, good thermal conductivity, and provides horizontal load bearing.
  4. The trolley at the bottom moves smoothly and without impact.
  5. The material is loaded from bottom, and the workbench can be moved.
  6. Can be customized according to process requirements.
  7. Advanced control and adjustment system, precise temperature control.
  8. There is an automatic flip-type exhaust port on the top of the furnace to realize the debinding of materials.
  9. The furnace top circulation fan is selected to increase the uniformity of the temperature field in the furnace.
  10. Furnace temperature and air rapid cooling control unit can be selected to realize rapid cooling within the furnace temperature of 400°C.
  11. Optional manual and automatic air intake control unit.

Technical Parameter

Model

Chmaber size(mm)

volume

Max temp.

Working temp.

voltage

power

Heating element

Temp precision

STT-96-12

400×600×400

96L

1200℃

1100℃

380V

18KW

HRE

±1℃

STT-288-12

600×800×600

288L

1200℃

1100℃

380V

30KW

HRE

±1℃

STT-640-12

800×1000×800

640L

1200℃

1100℃

380V

45KW

HRE

±1℃

STT-1200-12

1000×1200×1000

1200L

1200℃

1100℃

380V

80KW

HRE

±1℃

STT-2160-12

1200×1500×1200

2160L

1200℃

1100℃

380V

150KW

HRE

±1℃

STT-96-14

400×600×400

96L

1400℃

1300℃

380V

21KW

SIC

±1℃

STT-288-14

600×800×600

288L

1400℃

1300℃

380V

30KW

SIC

±1℃

STT-640-14

800×1000×800

640L

1400℃

1300℃

380V

50KW

SIC

±1℃

STT-1200-14

1000×1200×1000

1200L

1400℃

1300℃

380V

100KW

SIC

±1℃

STT-2160-14

1200×1500×1200

2160L

1400℃

1300℃

380V

200KW

SIC

±1℃

STT-96-17

400×600×400

96L

1700℃

1600℃

380V

25KW

MoSi2

±1℃

STT-288-17

600×800×600

288L

1700℃

1600℃

380V

50KW

MoSi2

±1℃

STT-640-17

800×1000×800

640L

1700℃

1600℃

380V

80KW

MoSi2

±1℃

STT-1200-17

1000×1200×1000

1200L

1700℃

1600℃

380V

150KW

MoSi2

±1℃

STT-2160-17

1200×1500×1200

2160L

1700℃

1600℃

380V

300kw

MoSi2

±1℃

Accessory

1. Furnace body 1 set
2. Temperature controller 1
3. Power cord 3 meters 1
4. Thermocouple 1
5. Instruction manual 1
6. Crucible Tong 1
7. High temperature gloves  1 pair
