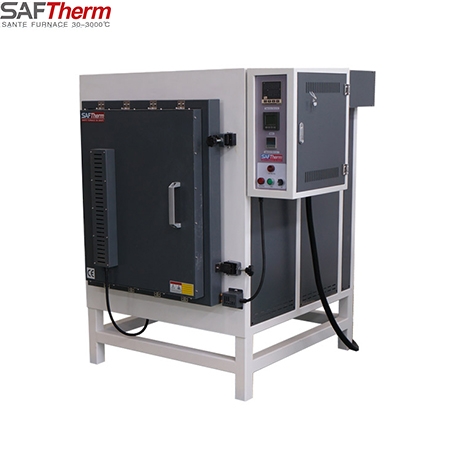

The 1400℃ manual door industry furnace is used for quenching, tempering, normalizing, annealing and other heat treatment processes of metal materials, and can also be used for sintering of non-metallic ceramic materials. It is suitable for small batch production and tests in laboratories and factories.
The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and anti-corrosion.
Strong metal frame shell structure, low furnace surface temperature.

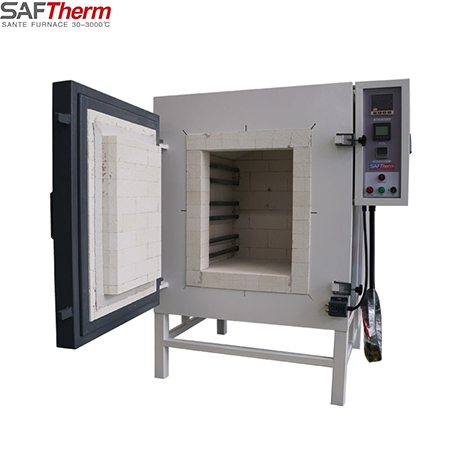

The side-opening furnace door structure, the left hinge is fixed, and the operation is convenient.
Multi-layer thermal insulation design, double-layer light refractory brick lining with strong structure, high-strength stacking and splicing, no asbestos, low heat loss and low energy consumption

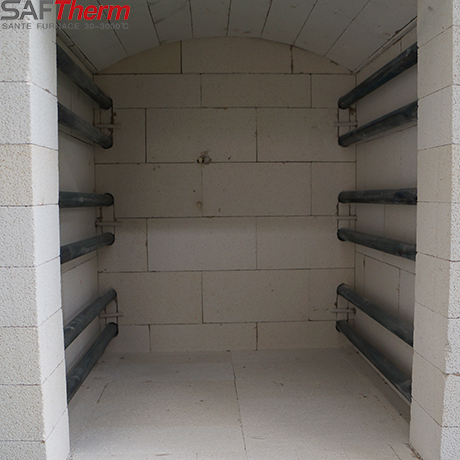

The high-quality SIC heating element is safely and firmly installed on both sides of the furnace, which is energy-saving and efficient, and has a long service life
Heating on both sides (left and right sides), so as to achieve good uniformity in the furnace
The silicon carbide bottom plate protects the bottom heating element, which has high mechanical strength, good thermal conductivity, and provides horizontal load bearing.

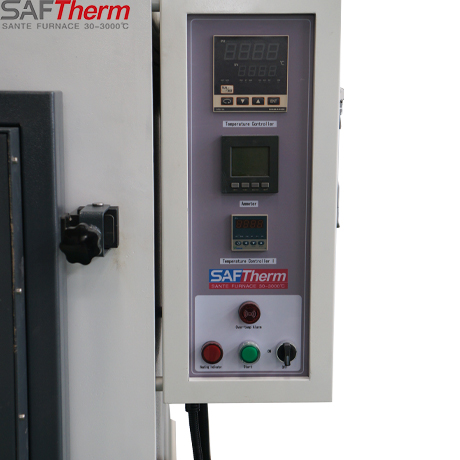

Temperature Control Panel
PID with SCR control mode, precise temperature control.
Internationally standardized S-type platinum-rhodium thermocouple, with a temperature measurement range of 0-1600 ℃ and a long service life.
The furnace door is equipped with a door-opening power-off safety protection switch.
Advanced controllers that meet complex process requirements
Simple operation, flexible programming
Programmable 30 segments for a single curve
Over temperature and fault alarm, automatic safety protection
Optional manual air intake and automatic clamshell exhaust
Furnace rapid cooling control system can be selected to realize rapid cooling within the furnace temperature of 400°C
（W xD xH）mm
High quality Silicon carbide Rod (SIC) heater
High temperature 1500 type polycrystal alumina ceramic fiber plate
S type platinum rhodium thermocouple
SHIMADEN (Japan) brand intelligent microcomputer PID controller can program 30 segments
Suggest 1-15℃/min for longer life using
Furnace & temperature control integrated structure
Modular control, sound and light alarm signal will be sent out for over temperature and broken thermocouple in the working process, and the protection action will be completed automatically
The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators
In order to provide customers with a better experience and thermal processing solutions, our company’s R&D team has made concerted efforts to customize large-scale elevator furnaces(lift furnace) for customers.
