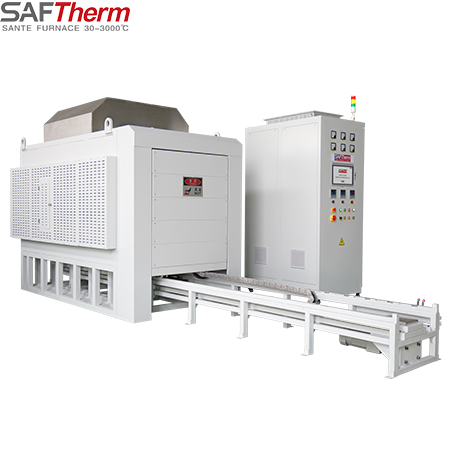

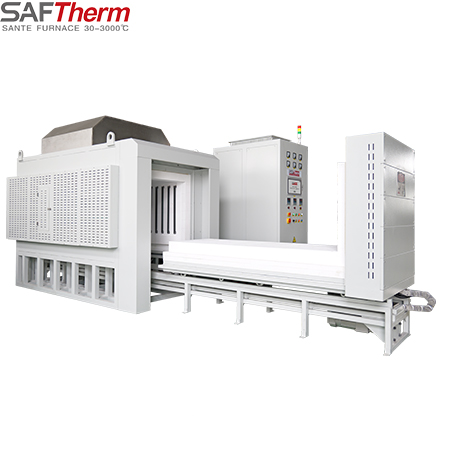

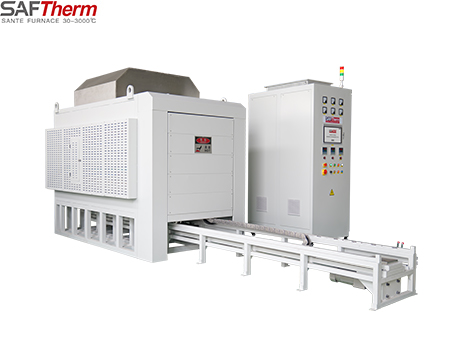

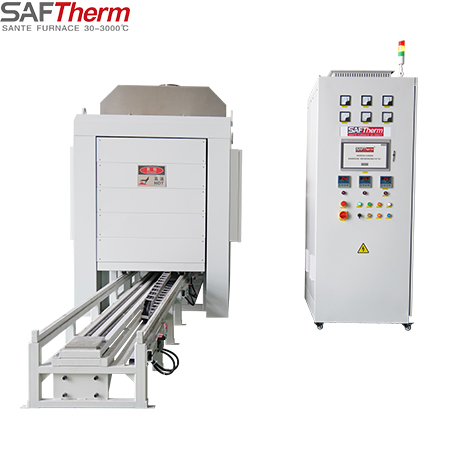

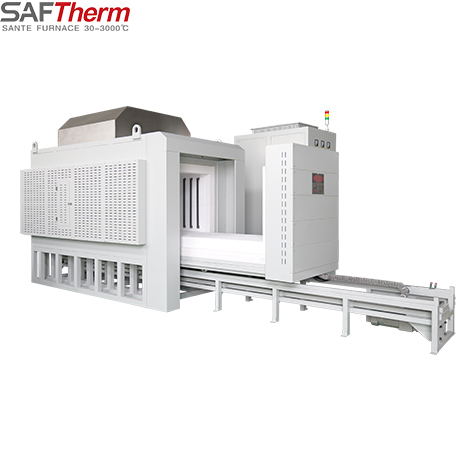

1400°C Bogie Hearth Resistance Furnace

Features

1. Multi-layer heat insulation design of refractory materials, multi-layer lightweight refractory brick lining or ceramic fiber lining with strong structure, high-strength stacking and splicing, no asbestos components, small heat loss and low energy consumption.

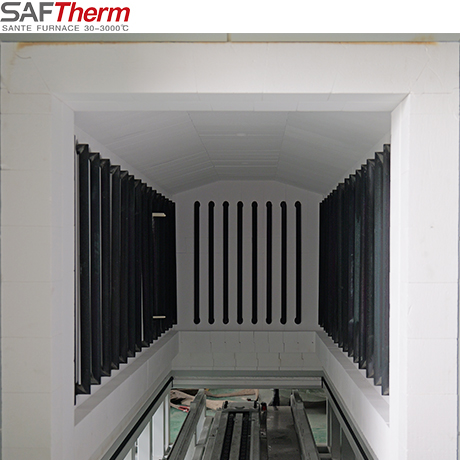

2. Heating on three sides (left, right and bottom side) to achieve good uniformity in the furnace.
3. The silicon carbide bottom plate covers and protects the bottom of the furnace, which has high mechanical strength, good thermal conductivity, and provides horizontal load bearing.
4. The trolley at the bottom moves smoothly and without impact.
5. The material is loaded from bottom, and the workbench can be moved.
6. Can be customized according to process requirements.
7. Advanced control and adjustment system, precise temperature control.
8. There is an automatic flip-type exhaust port on the top of the furnace to realize the debinding of materials.
9. The furnace top circulation fan is selected to increase the uniformity of the temperature field in the furnace.
10. Furnace temperature and air rapid cooling control unit can be selected to realize rapid cooling within the furnace temperature of 400°C.
11. Optional manual and automatic air intake control unit.
