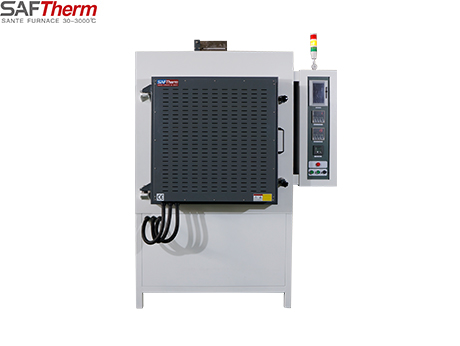

1700C Box-type resistance furnace is used for high-temperature sintering of electronic ceramics, magnetic materials, functional ceramics, structural ceramics, targets and composite materials, and suitable for small batch production and testing in laboratories and factories.
Multi-layer thermal insulation design, double-layer light refractory brick lining with strong structure, high-strength stacking and splicing, no asbestos, low heat loss and low energy consumption
| Model | STD-45-17A | STD-64-17A | STD-100-17A | STD-150-17A | STD-200-17A | STD-300-17A | STD-660-17A |
| Chamber Size（W xD xH）mm | 300 x500x300 | 400 x400x400 | 400x530x460 | 450x530x590 | 550 x530x720 | 55 x700x780 | 600 x1100x1000 |
| Rated Temperature | 1700℃ | ||||||
| Work Temperature | 1600℃ | ||||||
| Power Supply | 380V/18KW | 380V/20KW | 380V/25KW | 380V/30KW | 380V/40KW | 380V/50KW | 380V/80KW |
| Heating Element | Molybdenum Disilicide（MoSi2）Heater | ||||||
| Chamber Materials | Polycrystalline inorganic alumina ceramic fiber material prepared made by wet vacuum filtration | ||||||
| Temp control Accracy | ±1℃ | ||||||
| Thermcouple | N Type Thermcouple | ||||||
| Temperature Controller | Intelligent microcomputer PID temperature control instrument, SCR/SSR control, PID parameter self-tuning function .Programmable 4 groups program curves with each program curve with 8 segments totally 32 segments for program heating, program heat preservation, program cooling | ||||||
| Heating Rate | 1-15℃/min can be adjustable | ||||||
| Furnace Structure | Furnace temperature control integrated structure | ||||||
| Equipment Protection | Modular control with sound and light alarm signal sending out for over temperature and thermocouple broken in the working process, and the protection action will be completed automatically | ||||||
| Safety Protection | The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators | ||||||
| Furnace Shell | High-quality cold-rolled steel plate with CNC machine tool processing, then it will have the process of welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder | ||||||
| Quality Certificate | ISO9001 CE SGS TUV | ||||||
| Standard Device | 1、Furnace Main Body : 1 set 2、Temperature Controller : 1 pc 3、Power Line : 3 meters 4、Thermcouple : 1 pc 5、Operation manual ； 1 pc 6 Crucible Tong ； 1 pc 7、High Temperature Gloves : 1 pair | ||||||
| 1. Furnace body | 1 set |
| 2. Temperature controller | 1 |
| 3. Power cord 3 meters | 1 |
| 4. Thermocouple | 1 |
| 5. Instruction manual | 1 |
| 6. Crucible pliers | 1 |
| 7. High temperature gloves | 1 pair |
