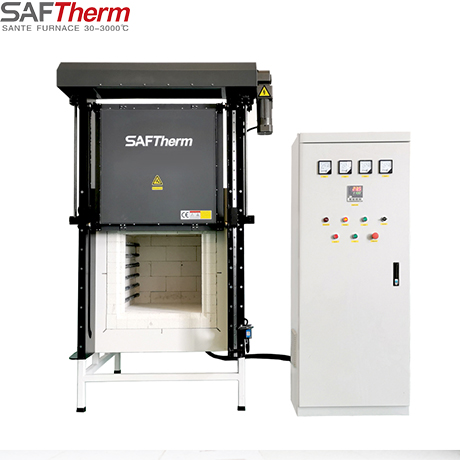

1400°C Automatic Door Industrial Chamber Furnace

  • Model No. :STD-150-14
  • Chamber Size: 450x530x590MM
  • Continuous Temp.: 1300℃
  • Max Temperature:1400℃
  • Heating Element :Silicon Carbide Rods(SIC)
  • Voltage:380V
  • Temperature Precision ±1℃
  • Thermocouple:S type
  • Advantage
  • Related Cases
  • Related Products
Free Quote

Description

The 1400C automatic door industry furnace is used for heat treatment processes such as quenching, tempering, normalizing, and annealing of metal materials, and can also be used for sintering of non-metallic ceramic materials. It is very suitable for small batch production and testing in laboratories and factories.

Features

Furnace Shell

  1. The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and anti-corrosion.
  2. Strong metal frame shell structure, low furnace surface temperature.

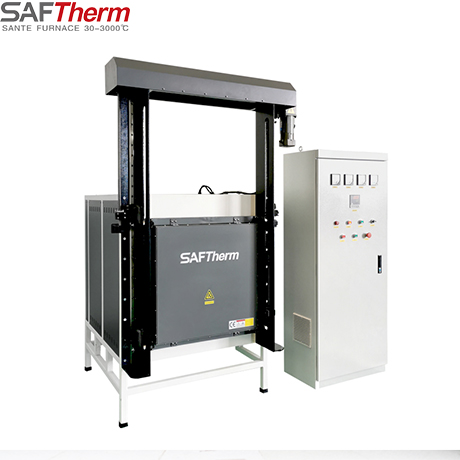

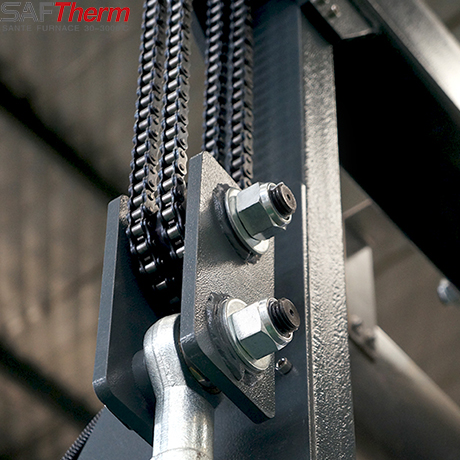

  3. Electro-hydraulic lifting furnace door, with limit switch.
  4. The automatic opening switch of the furnace door can be selected from button type and foot type.

Refractory

Multi-layer thermal insulation design, double-layer light refractory brick lining with strong structure, high-strength stacking and splicing, no asbestos, low heat loss and low energy consumption

Heating System

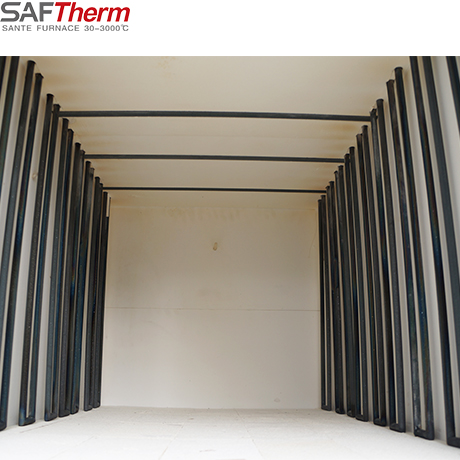

  1. High-quality metal or ceramic heating element, free heat radiation heating in the furnace cavity, energy saving and high efficiency, long service life
  2. Heating on three sides (left and right sides and furnace bottom), so as to achieve good uniformity in the furnace
  3. The silicon carbide bottom plate covers and protects the bottom heating element, which has high mechanical strength, good thermal conductivity, and provides horizontal load bearing.

Temperature Control Panel

  1. PID and SCR control mode, precise temperature control
  2. International standard thermocouple, long service life
  3. The furnace door is equipped with a door-opening power-off safety protection switch
  4. The temperature controller is on the right side of the furnace body, and an independent control cabinet can also be selected

Program Controller

  1. Advanced controllers that meet complex process requirements
  2. Simple operation, flexible programming
  3. Programmable 30 segments for a single curve
  4. Over temperature and fault alarm, automatic safety protection
  5. Optional manual air intake and automatic clamshell exhaust
  6. Furnace rapid cooling control system can be selected to realize rapid cooling within the furnace temperature of 400°C

Technical Parameter

Model

Chamber size(mm)

Chamber volume

Max temp.

Working temp.

voltage

power

Heating element

Temp Precision

STD-100-12P

400×530×460

100L

1200℃

1100℃

380V

15KW

HRE

±1℃

STD-150-12P

450×530×590

150L

1200℃

1100℃

380V

24KW

HRE

±1℃

STD-200-12P

500×530×720

200L

1200℃

1100℃

380V

27KW

HRE

±1℃

STD-300-12P

550×700×780

300L

1200℃

1100℃

380V

45KW

HRE

±1℃

STD-660-12P

600×1100×1000

660L

1200℃

1100℃

380V

60KW

HRE

±1℃

STD-1000-12P

800×1000×1250

1000L

1200℃

1100℃

380V

80KW

HRE

±1℃

STD-96-14P

400×600×400

96L

1400℃

1300℃

380V

21KW

SIC

±1℃

STD-150-14P

450×530×590

150L

1400℃

1300℃

380V

25KW

SIC

±1℃

STD-200-14P

500×530×720

200L

1400℃

1300℃

380V

28KW

SIC

±1℃

STD-288-14P

600×800×600

288L

1400℃

1300℃

380V

30KW

SIC

±1℃

STD-640-14P

800×1000×800

640L

1400℃

1300℃

380V

50KW

SIC

±1℃

STD-1200-14P

1000×1200×1000

1200L

1400℃

1300℃

380V

100KW

SIC

±1℃

STD-96-17P

400×600×400

96L

1700℃

1600℃

380V

25KW

MoSi2

±1℃

STD-150-17P

450×530×590

150L

1700℃

1600℃

380V

30KW

MoSi2

±1℃

STD-200-17P

500×530×720

200L

1700℃

1600℃

380V

40KW

MoSi2

±1℃

STD-288-17P

600×800×600

288L

1700℃

1600℃

380V

50KW

MoSi2

±1℃

STD-640-17P

800×1000×800

640L

1700℃

1600℃

380V

80KW

MoSi2

±1℃

STD-1200-17P

1000×1200×1000

1200L

1700℃

1600℃

380V

150KW

MoSi2

±1℃

AStandard ccessories

1. Furnace body1 set
2. Temperature controller1
3. Power cord 3 meters1
4. Thermocouple1
5. Instruction manual1
6. Crucible pliers1
7. High temperature gloves 1 pair
