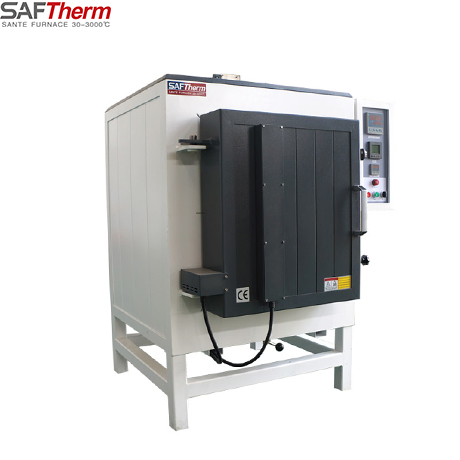

1200℃ manual door industrial furnace is used for quenching, tempering, normalizing, annealing and other heat treatment processes of metal materials, and can also be used for sintering of non-metallic ceramic materials. It is very suitable for small batch production and pilot test in laboratories and factories..
The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and anti-corrosion.
Strong metal frame shell structure, low furnace surface temperature.

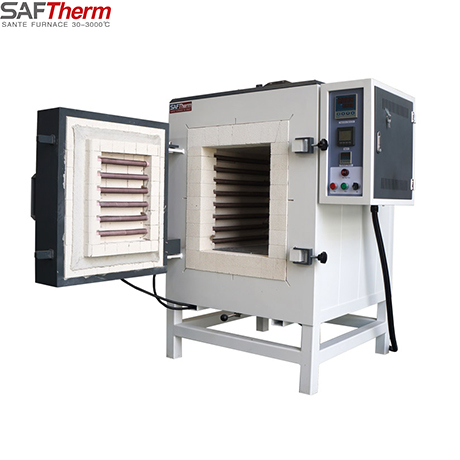

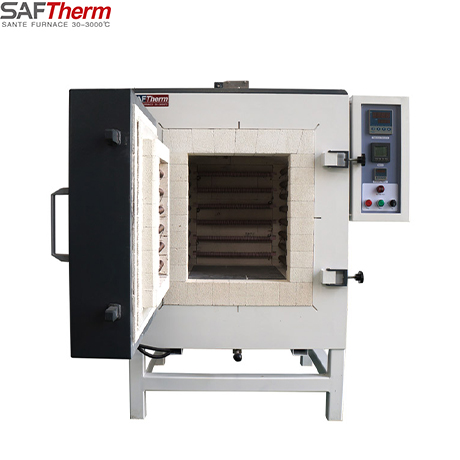

The side-opening furnace door structure, the left hinge is fixed, and the operation is convenient.
Multi-layer thermal insulation design, double-layer light refractory brick lining with strong structure, high-strength stacking and splicing, no asbestos, low heat loss and low energy consumption

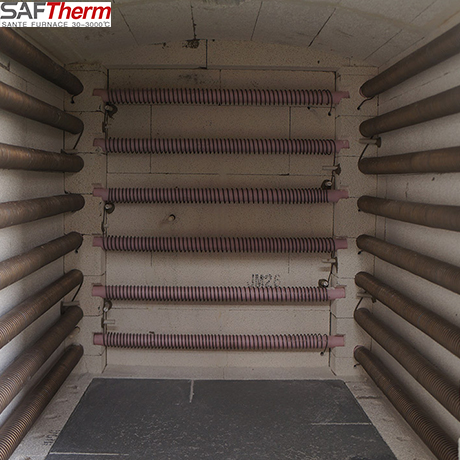

1、High-quality HRE spiral resistance wire heating element is wound on the ceramic support tube with free heat radiation heating in the furnace cavity, which is energy saving and high efficiency for long service life 2、Heating on three sides (left and right and furnace bottom) for good homogeneity in the furnace 3、 Silicon carbide base plate covers and protects the bottom heating element with high mechanical strength, and good thermal conductivity, while providing horizontal load bearing
Temperature Control Panel
1、PID with SCR control mode for precise temperature control 2、International standard N-type nickel-chromium-silicon thermocouple, temperature range 0-1300 ℃ for long service life 3、The furnace door is equipped with a door-opening power-off safety protection switch
1、Advanced controllers for complex process needs 2、Simple and direct operation for flexible programming 3、Programmable 4 curves, 8 program segments for a single curve 4、Over temperature and fault alarm, automatic safety protection 5、Optional manual air intake and automatic clamshell exhaust for choosing 6、Furnace temperature air rapid cooling control unit can be selected to realize rapid cooling within the furnace temperature bellow 400°C
（W xD xH）mm
HRE Alloy Resistance Wire
Polycrystalline inorganic alumina ceramic fiber material prepared made by wet vacuum filtration
Temp control Accracy
N Type Thermcouple
Intelligent microcomputer PID temperature control instrument, SCR/SSR control, PID parameter self-tuning function .Programmable 4 groups program curves with each program curve with 8 segments totally 32 segments for program heating, program heat preservation, program cooling
1-15℃/min can be adjustable
Furnace temperature control integrated structure
Modular control with sound and light alarm signal sending out for over temperature and thermocouple broken in the working process, and the protection action will be completed automatically
The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators
High-quality cold-rolled steel plate with CNC machine tool processing, then it will have the process of welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder
ISO9001 CE SGS TUV
1、Furnace Main Body : 1 set 2、Temperature Controller : 1 pc 3、Power Line : 3 meters 4、Thermcouple : 1 pc 5、Operation manual ； 1 pc 6 Crucible Tong ； 1 pc 7、High Temperature Gloves : 1 pair
1. Furnace body
2. Temperature controller
3. Power cord 3 meters
5. Instruction manual
6. Crucible pliers
7. High temperature gloves
1 Year Warranty We can provide very professional commercial support, technical support and document support
22 Years Experience We have more than 22 years of experience in Electirc Heating Equipment,Excellent temperature field uniformity is our strength
R&D Design Team Professional design and development team, to provide you with professional and reasonable heat treatment solutions
Quality Control Rigorous quality control process, each process process traceable, to provide customers with high quality products
