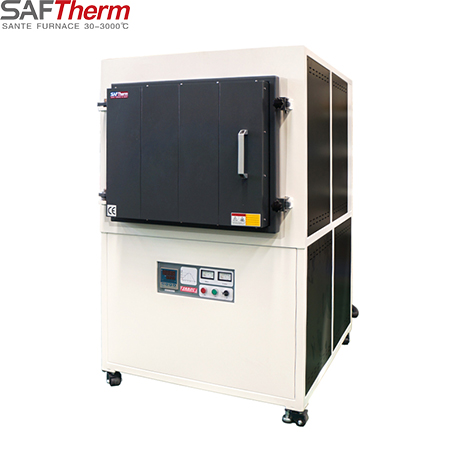

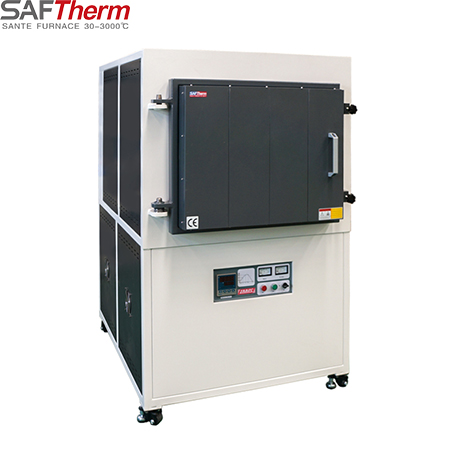

1700℃ manual door industrial furnace

Description

1700℃ manual door industrial furnace is used for high-temperature sintering of electronic ceramics, magnetic materials, functional ceramics, structural ceramics, targets and composite materials, and suitable for small batch production and testing in laboratories and factories.

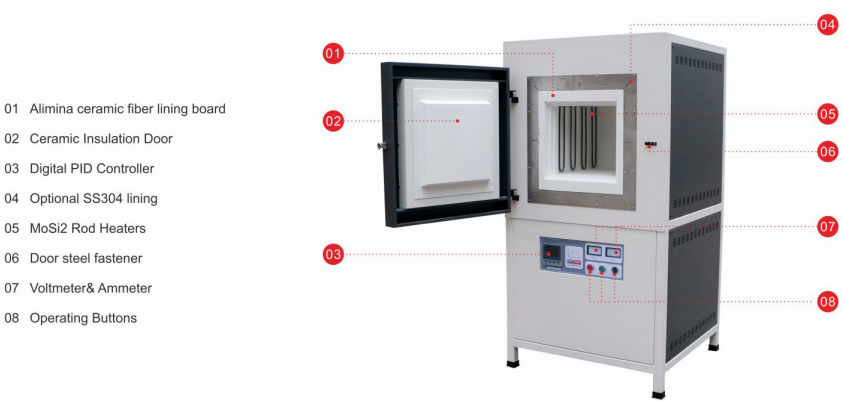

Features

Furnace Shell

The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and anti-corrosion.
Strong metal frame shell structure, low furnace surface temperature.

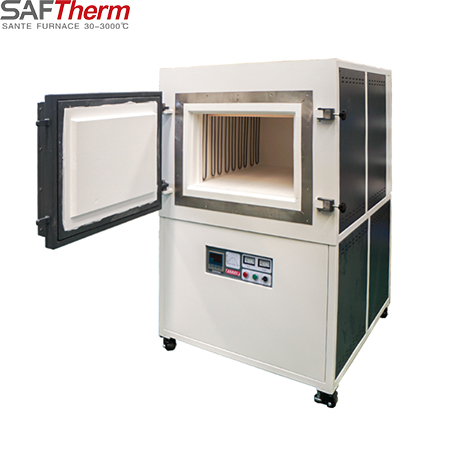

The side-opening furnace door structure, the left hinge is fixed, and the operation is convenient.

Refractory

Multi-layer thermal insulation design, double-layer light refractory brick lining with strong structure, high-strength stacking and splicing, no asbestos, low heat loss and low energy consumption

Heating System

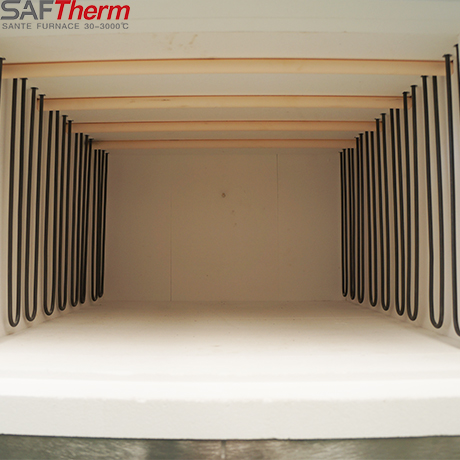

High-quality MoSi2 heating element, safely and firmly installed on both sides of the furnace, free heat radiation heating in the furnace cavity, energy saving and high efficiency, long service life
Heating on both sides (left and right sides), so as to achieve good uniformity in the furnace

Temperature Control Panel

PID and SCR control mode, precise temperature control
International standard B-type platinum-rhodium thermocouple, temperature range 50-1800 ℃, long service life
The furnace door is equipped with a door-opening power-off safety protection switch

Program Controller

Advanced controllers that meet complex process requirements
Simple operation, flexible programming
Programmable 30 segments for a single curve
Over temperature and fault alarm, automatic safety protection
Optional manual air intake and automatic clamshell exhaust
Furnace rapid cooling control system can be selected to realize rapid cooling within the furnace temperature of 400°C

Technical Parameter

Model	STD-36-17
Chamber size（W xD xH）mm	300 x300x400
Max temperature	1700℃
Working Temperature	1600℃
Power supply	380V/20KW
Heating element	High quality Molybdenum Disilicide (MoSi2) heater
Chamber material	High temperature 1800 type polycrystal alumina ceramic fiber plate
Temp. precision	±1℃
Thermocouple	B type platinum rhodium thermocouple
Temp controller	Intelligent microcomputer PID temperature controller, SCR/SSR control, PID parameter self-tuning function; programmable 30 segments, program heating, program heat preservation, program cooling
Heating rate	≤20 °C/min ( suggest 10°C/min for longer life using of furnace )
Furnace structure	Furnace & temperature control integrated structure
Equipment protection	Modular control, sound and light alarm signal will be sent out for over temperature and broken thermocouple in the working process, and the protection action will be completed automatically
Safety protection	The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators
Furnace shell	High-quality cold-rolled steel plate CNC processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying
Quality Certification	ISO9001 CE SGS TUV
Standard packing	1. furnace body 2. Temperature controller 3. power cable 3 meters 4. Thermocouple 1 pc 5. operation manual 6. one pair of crucible tongs 7. one pair of high temperature gloves

AStandard ccessories

1. Furnace body	1 set
2. Temperature controller	1
3. Power cord 3 meters	1
4. Thermocouple	1
5. Instruction manual	1
6. Crucible pliers	1
7. High temperature gloves	1 pair
