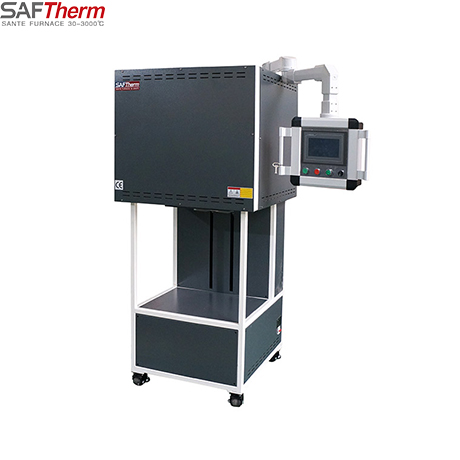

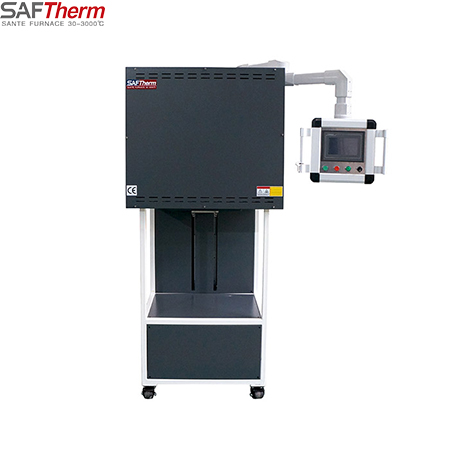

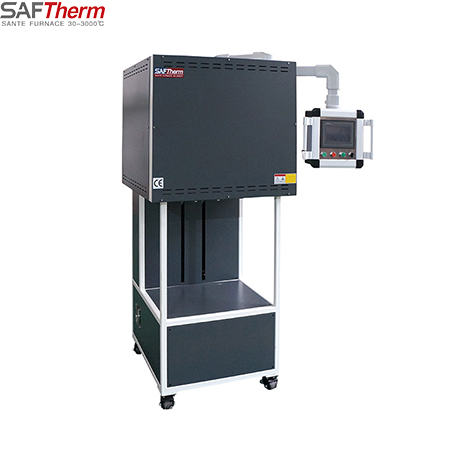

1200°C Lifting Bottom Furnace

  • Model No. :STS-27-12
  • Chamber Volume:27L
  • Continuous Temp. :1100℃
  • Max Temp.:1200°C
  • Power Supply:220V/2kw
  • Heating Element: High Quality Alloy Resisance Wire(HRE)
  • Temp Precision:±1°C
  • Thermocouple: N type
  • Advantage
  • Related Cases
  • Related Products
Free Quote

Description

The 1200°C Lifting Bottom Furnace is mainly designed and developed for colleges and universities, scientific research institutes, factories and enterprises, and other industrial laboratories. It is used in the fields of new materials such as metal materials, ceramic materials, nano-materials, and semiconductor materials; it can also be used in tooth sintering in the denture industry.

Features

Furnace shell

1、The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and anti- corrosion.
2、 Sturdy metal tank shell structure with low furnace surface temperature
3、Furnace door with flange type sealing structure and manual screw compression with side door way for easier operating

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and other high-quality insulation board heat shielding backing, which does not contain asbestos components, low heat loss and low energy consumption

Heating system

1、 High-quality resistance heating element installed with free heat radiation heating in the furnace cavity, which is energy saving and high efficiency, for long service life
2、Ring heating element installed on all sides can achieve good homogeneity in the furnace chamber
3、Optional accessories like furnace top exhaust port is available and also optional with furnace bottom with regulated air inlet port

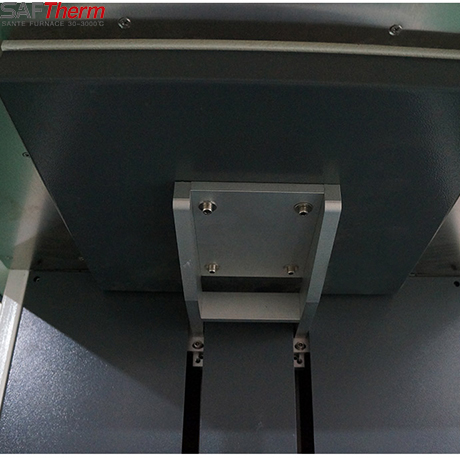

4、The charging container can be stacked on the bottom of the furnace, and two or three layers of materials can be placed in different furnace types

Temperature Control Panel

1、PID controller with SSR\SCR control mode for precise temperature control
2、International standard thermocouple with long service life

Program Controller

1、Advanced controllers for complex process needs
2、Simple and direct operation with flexible programming
3、Programmable 30 program segments for a single curve .
4、Over temperature and fault alarm with automatic safety protection

Technical Parameter

Product Model

Chamber Size(mm)

Volume

Max Temperature

Working Temperature

Voltage

Power

Heating Element

Temperature control accuracy

STS-120-12

Φ120×120

2L

1200℃

1100℃

220V

2KW

HRE

±1℃

STS-150-12

Φ150×150

3L

1200℃

1100℃

220V

3KW

HRE

±1℃

STS-200-12

Φ200×200

6L

1200℃

1100℃

220V

4KW

HRE

±1℃

STS-300-12

Φ300×300

20L

1200℃

1100℃

380V

6KW

HRE

±1℃

STS-120-14

Φ120×120

2L

1400℃

1350℃

220V

3KW

SIC

±1℃

STS-150-14

Φ150×150

3L

1400℃

1350℃

220V

4KW

SIC

±1℃

STS-200-14

Φ200×200

6L

1400℃

1350℃

220V

5KW

SIC

±1℃

STS-300-14

Φ300×300

20L

1400℃

1350℃

380V

6KW

SIC

±1℃

STS-120-17

Φ120×120

2L

1700℃

1600℃

220V

3KW

MoSi2

±1℃

STS-150-17

Φ150×150

3L

1700℃

1600℃

220V

4KW

MoSi2

±1℃

STS-200-17

Φ200×200

6L

1700℃

1600℃

220V

4KW

MoSi2

±1℃

STS-300-17

Φ300×300

20L

1700℃

1600℃

380V

8KW

MoSi2

±1℃

Accessory

1. Furnace body 1 set
2. Temperature controller 1
3. Power cord 3 meters 1
4. Thermocouple 1
5. Instruction manual 1
6. Crucible Tong 1
7. High temperature gloves  1 pair
