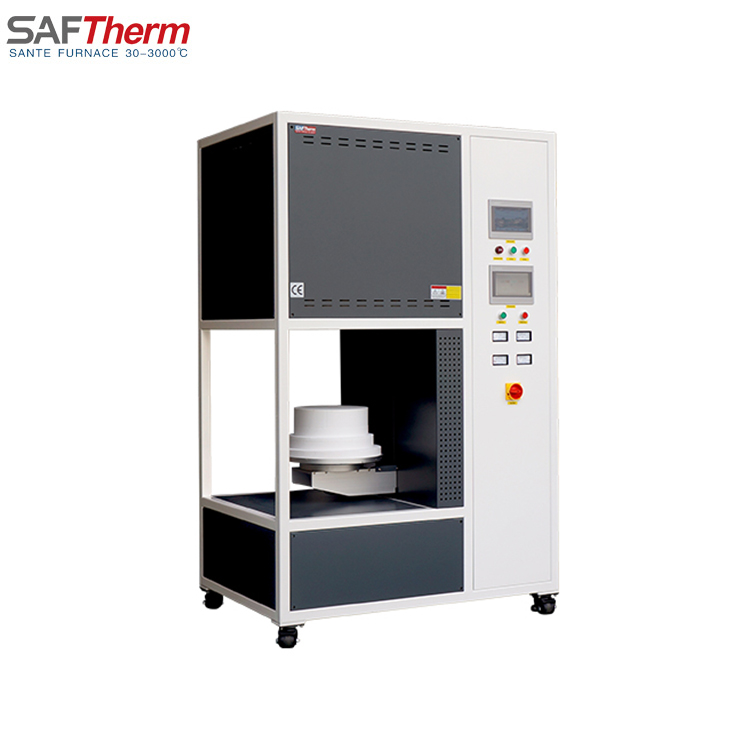

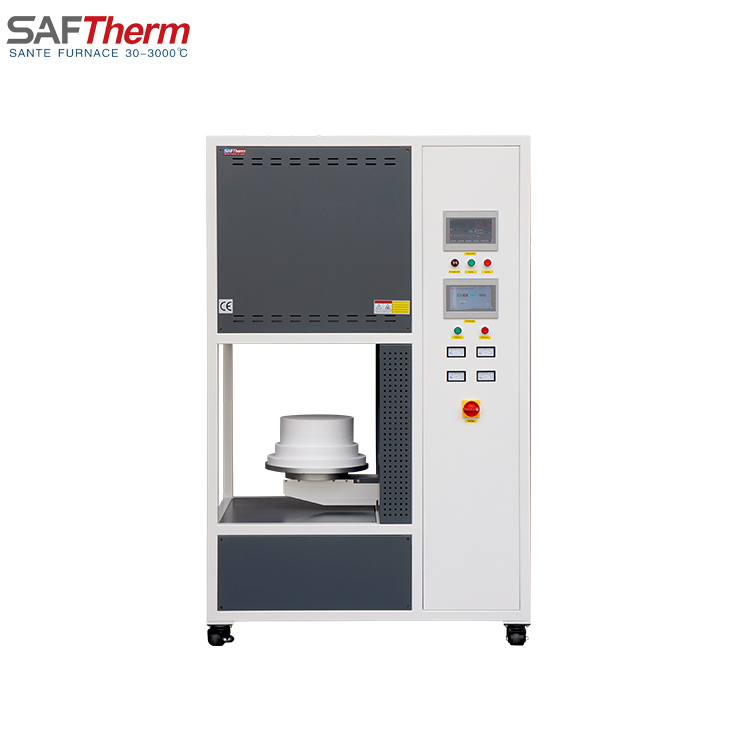

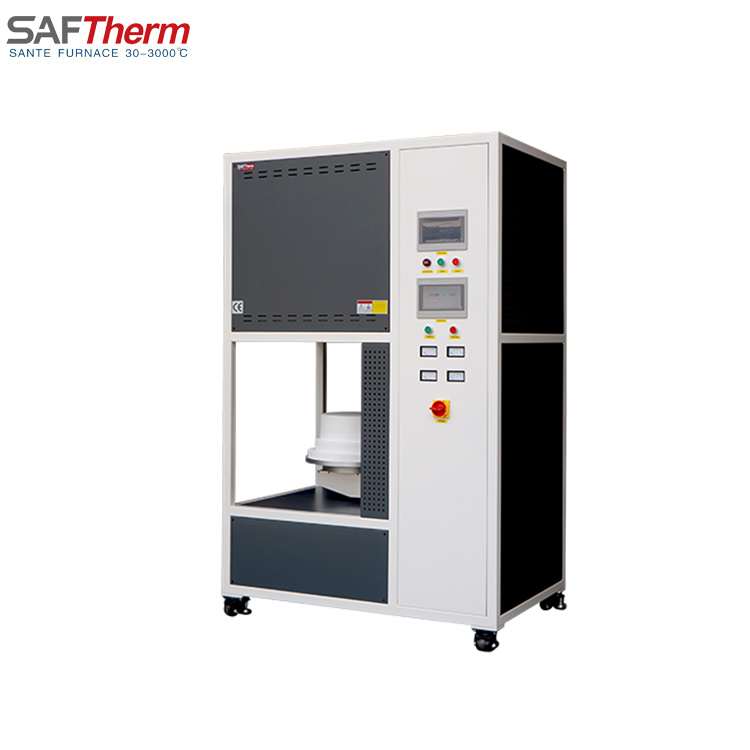

1700C Lifting Bottom Loading Furnace(STS-27-17E)

  • Model No. :STS-27-17E
  • Chamber Volume:27L
  • Continuous Temp. :1600℃
  • Max Temp.:1700°C
  • Power Supply:380V/8kw
  • Heating Element:Molybdenum Disilicide(MOSi2)heater
  • Temp Precision:±1°C
  • Thermocouple: B type
  • Advantage
  • Related Cases
  • Related Products
Free Quote

Description

The elevated rotary furnace is mainly used for high temperature sintering of electronic ceramics, magnetic materials, functional ceramics, structural ceramics, ITO targets and composite materials, and is very suitable for small batch production in laboratories and factories.

Features

Furnace shell

1、The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and anti- corrosion.

2、 Sturdy metal tank shell structure with low furnace surface temperature

3、Furnace door with flange type sealing structure and manual screw compression with side door way for easier operating

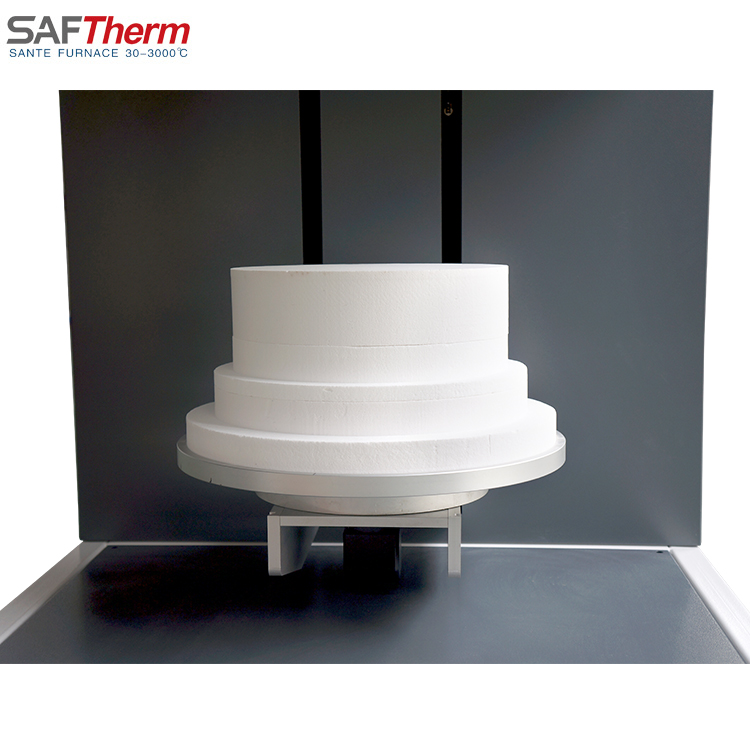

4, The bottom table servo motor driven rotation, PLC precision control, adjustable speed, can be positive and negative rotation, to achieve the free rotation of the sample at high temperatures, the heat is uniformly radiated, the material is more evenly heated.

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and other high-quality insulation board heat shielding backing, which does not contain asbestos components, low heat loss and low energy consumption

Heating system

1、 High-quality resistance heating element installed with free heat radiation heating in the furnace cavity, which is energy saving and high efficiency, for long service life
2、Ring heating element installed on all sides can achieve good homogeneity in the furnace chamber
3、Optional accessories like furnace top exhaust port is available and also optional with furnace bottom with regulated air inlet port
4、The charging container can be stacked on the bottom of the furnace, and two or three layers of materials can be placed in different furnace types

Temperature Control Panel

1、PID controller with SSR\SCR control mode for precise temperature control
2、International standard thermocouple with long service life

Program Controller

1、Advanced controllers for complex process needs
2、Simple and direct operation with flexible programming
3、Programmable 30 program segments for a single curve .
4、Over temperature and fault alarm with automatic safety protection

Functional options

1、Optional furnace temperature air cooling control unit to realize the furnace temperature within 400 ℃ rapid cooling

2、Optional manual and automatic air inlet control unit, to realize the product atmosphere protection process.

Technical Parameter

Model

Chamber Size(mm)

Volume

Max Temperature

Working Temperature

Voltage

Power

Heating Element

Temperature control accuracy

STSX-96-12

400×600×400

96L

1200℃

1100℃

380V

18KW

HRE

±1℃

STSX-288-12

600×800×600

288L

1200℃

1100℃

380V

30KW

HRE

±1℃

STXS-640-12

800×1000×800

640L

1200℃

1100℃

380V

45KW

HRE

±1℃

STS-96-14

400×600×400

96L

1400℃

1300℃

380V

21KW

SIC

±1℃

STS-288-14

600×800×600

288L

1400℃

1300℃

380V

30KW

SIC

±1℃

STS-640-14

800×1000×800

640L

1400℃

1300℃

380V

50KW

SIC

±1℃

STS-96-17

400×600×400

96L

1700℃

1600℃

380V

25KW

MoSi2

±1℃

STS-150-17

500×600×500

150L

1700℃

1600℃

380V

35KW

MoSi2

±1℃

STS-324-17

600×900×600

324L

1700℃

1600℃

380V

60KW

MoSi2

±1℃

STS-640-17

800×1000×800

640L

1700℃

1600℃

380V

80KW

MoSi2

±1℃

STS-96-18

400×600×400

96L

1750℃

1700℃

380V

25KW

MoSi2

±1℃

STS-150-18

500×600×500

150L

1750℃

1700℃

380V

35KW

MoSi2

±1℃

STS-324-18

600×900×600

324L

1750℃

1700℃

380V

60KW

MoSi2

±1℃

Accessory

1. Furnace body 1 set
2. Temperature controller 1
3. Power cord 3 meters 1
4. Thermocouple 1
5. Instruction manual 1
6. Crucible Tong 1
7. High temperature gloves  1 pair
