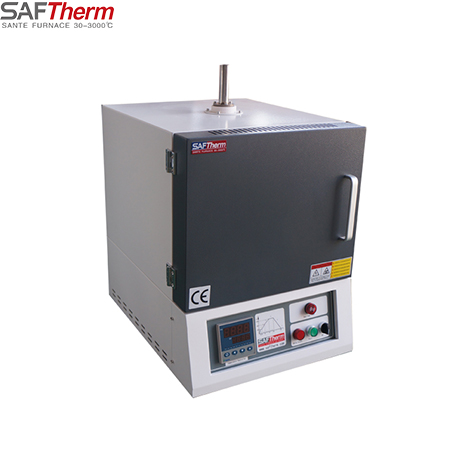

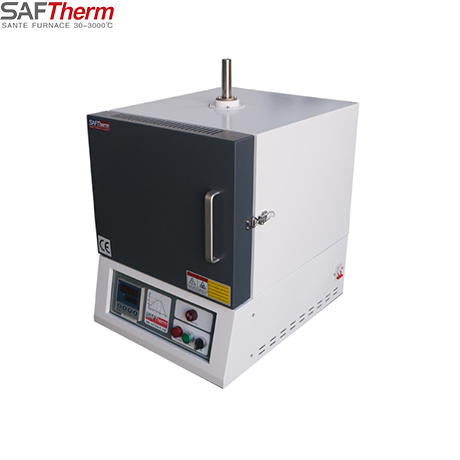

1000°C Muffle Furnace(Corrosion Resistant)

  • Model No. STM-8-10N
  • Chamber Size: 200x200x200MM
  • Outer Dimension: 600x620x920MM
  • Continuous Temp. :900℃
  • Max Temp. :1000℃
  • Heating Element High Quality HRE
  • Temperature Precision ±1℃
  • Thermocouple N type
  • Advantage
  • Related Cases
  • Related Products
Free Quote

Description

1000℃ Corrosion Resistant Muffle Furnace product is suitable for heat treatment of various samples in the laboratory, including those with corrosive effect,The material of the furnace chamber is a high alumina poly-light refractory.

Features

Furnace Shell

  1. The shell is made of metal Q235 low carbon steel, and the surface is electrostatically resistant to paint and anti-corrosion
  2. Solid metal frame shell structure, low furnace surface temperature

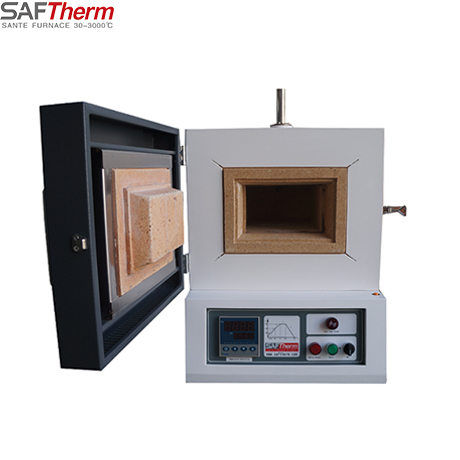

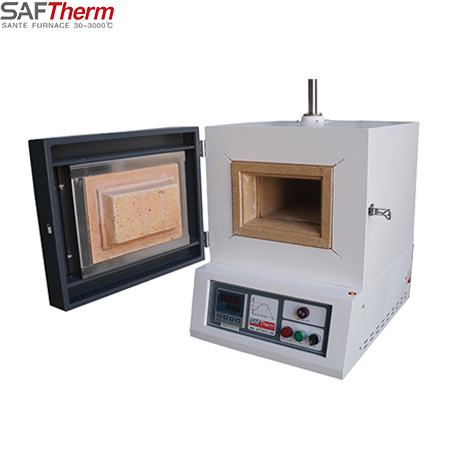

  3. Side-opening furnace door structure, the left hinge is fixed, easy to operate

Refractory

Multi-layer thermal insulation design, double-layer light refractory brick lining with strong structure, high-strength stacking and splicing, no asbestos, low heat loss and low energy consumption

Heating System

  1. High-quality HRE spiral resistance wire heating element, the resistance wire is wound on the ceramic support tube, free heat radiation heating in the furnace cavity, energy saving, high efficiency and long service life
  2. Heating on three sides (left and right sides and the bottom of the furnace), so as to achieve
  3. The silicon carbide bottom plate covers and protects the bottom heating element, which has high mechanical strength, good thermal conductivity, and provides horizontal bearing at the same time.

Temperature Control Panel

  1. PID cooperates with SCR control mode, the temperature control is accurate
  2. International standardized N-type nickel-chromium-silicon thermocouple, with a temperature measurement range of 0-900 °C, and a long service life
  3. The furnace door has a safety protection switch for opening the door and power off

Program Controller

  1. Advanced controller that adapts to complex process requirements
  2. Simple and direct operation, flexible programming
  3. Programmable 4 curves, 8 program segments for a single curve
  4. Over temperature and fault alarm, automatic safety protection
  5. Optional manual air inlet and automatic clamshell exhaust
  6. Optional furnace temperature air rapid cooling control unit to achieve rapid cooling within the furnace temperature of 400 °C

Technical Parameter

Model STM-8-10N STM-16-10N STM-30-10N
Chamber size(W xD xH)mm 200x300x120 250 x300x250 300 x500x200
 Outer size(W xD xH)mm 480 x630x630 550x635x780 600 x870x735
Max temperature 1000°C
Working temperature 900°C
Power supply 220V/3KW 220V/6KW 380V/7.5KW
Heating element   HRE Alloy resistance wire
Chamber material Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration
Temp.Precision ±1℃
Termocouple N Type termocouple
Temperature controller Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 4 groups of 8 program segments, program temperature rise, program heat preservation, program cooling
Heating rate 1-25℃/min free adjustment
Furnace structure Furnace temperature control integrated structure
Equipment protection Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically
Safety protection The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators
Quality certificate ISO9001   CE    SGS   TUV

Accessories

1. Furnace body1 set
2. Temperature controller1
3. Power cord 3 meters1
4. Thermocouple1
5. Instruction manual1
6. Crucible pliers1
7. High temperature gloves 1 pair
