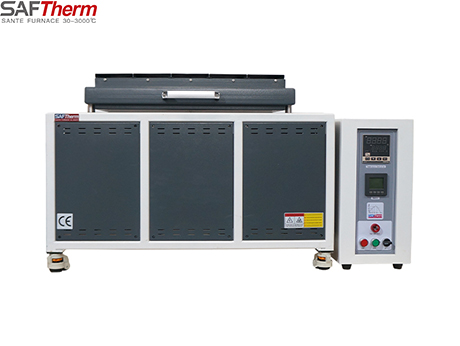

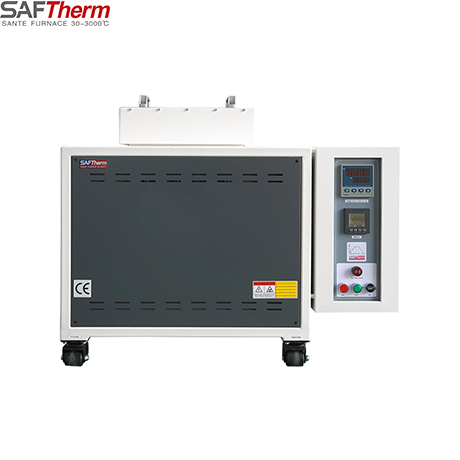

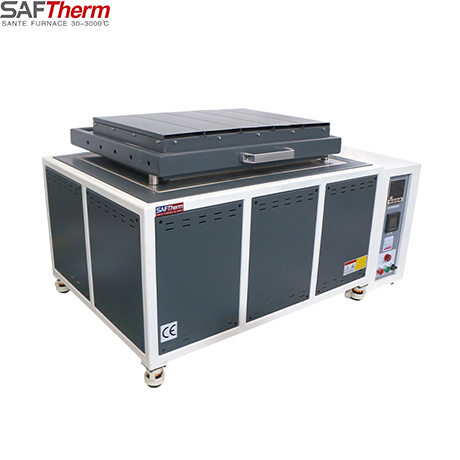

1200℃ Pit-type Sintering Furnace

Model No. :STJ-200-12
Quartz Tube（OD):Φ200×300mm
Continuous Temp. :1100℃
Max Temp.:1200°C
Heating Element:HRE heater
Power Supply:220V/5kw
Temp Precision ±1°C
Thermocouple: N type

Free Quote [email protected]

Description

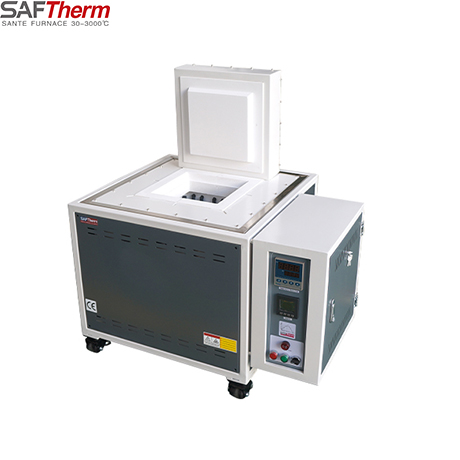

The pit-type resistance furnace (crucible furnace) is composed of an outer shell, a furnace chamber, heating elements, and a temperature control system. It is a periodic operation furnace. Its structural furnace body is a cylindrical deep well. The workpiece is placed vertically from the furnace top or vertically loaded into the furnace for heating using a special hanging tool. It can also be loaded with crucibles such as silicon carbide and graphite as linings.

Features

The large-diameter tube furnace is composed of a heating system, a temperature control system, a working tube, a sealing kit and an automatic opening structure of the furnace cover. It can work under vacuum or atmosphere protection to meet various CVD process requirements. Multiple temperature zones can be set. Realize high uniformity temperature field conditions, and can also be applied to temperature field gradient experiments of materials. This product is widely used in pilot sintering and products in graphene materials, lithium battery positive and negative electrode materials, semiconductor materials, new energy and new material industries batch heat treatment.

Furnace shell

The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low
Horizontal use mode, upper opening structure, easy to operate

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption

Heating system

High-quality heating elements are distributed around the furnace, and heat is freely radiated in the furnace cavity, which is energy-saving and efficient, and has a long service life.
The heating elements are evenly arranged around the furnace, thus achieving good uniformity in the furnace.

Temperature Control Panel

PID with SSR/SCR control mode, precise temperature control
International standard thermocouple, long service life
Equipped with heating indicator light and over-temperature alarm buzzer

Program Controller

Advanced controllers that meet complex process requirements
Simple and direct operation, flexible programming
Programmable 32 program segments
Over temperature and fault alarm, automatic safety protection

Technical Parameter

Model	Chamber size (mm)	Max temp	ContinueTemp	Power		Heating Element	Temp Precision
STJ-120-12	Φ120×300	1200℃	1100℃	220V	3KW	HRE	±1℃
STJ-200-12	Φ200×300	1200℃	1100℃	220V	5KW	HRE	±1℃
STJ-300-12	Φ300×300	1200℃	1100℃	380V	9KW	HRE	±1℃
STJ-200-14	200×200×200	1400℃	1350℃	220V	5KW	SIC	±1℃
STJ-300-14	300×300×300	1400℃	1350℃	380V	9KW	SIC	±1℃
STJ-500-14	500×500×500	1400℃	1350℃	380V	25KW	SIC	±1℃
STJ-200-17	200×200×200	1700℃	1600℃	220V	5KW	MoSi2	±1℃
STJ-300-17	300×300×300	1700℃	1600℃	380V	13KW	MoSi2	±1℃
STJ-500-17	500×500×500	1700℃	1600℃	380V	25KW	MoSi2	±1℃

Accessory

1. Furnace body	1 set
2. Temperature controller	1
3. Power cord 3 meters	1
4. Thermocouple	1
5. Instruction manual	1
6. Crucible pliers	1
7. High temperature gloves	1 pair
