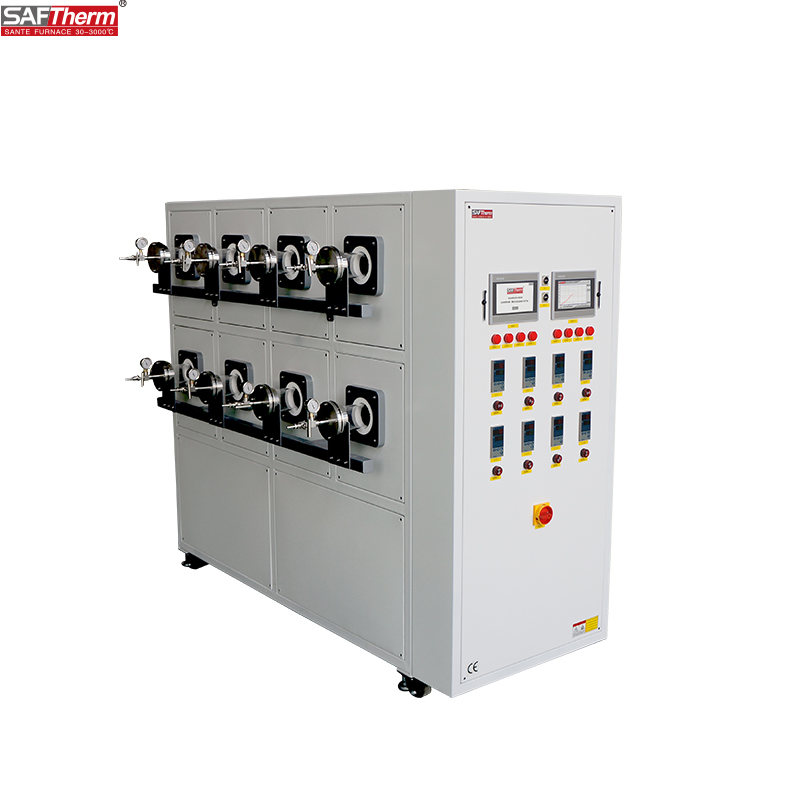

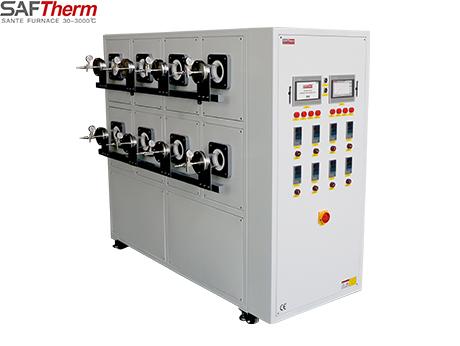

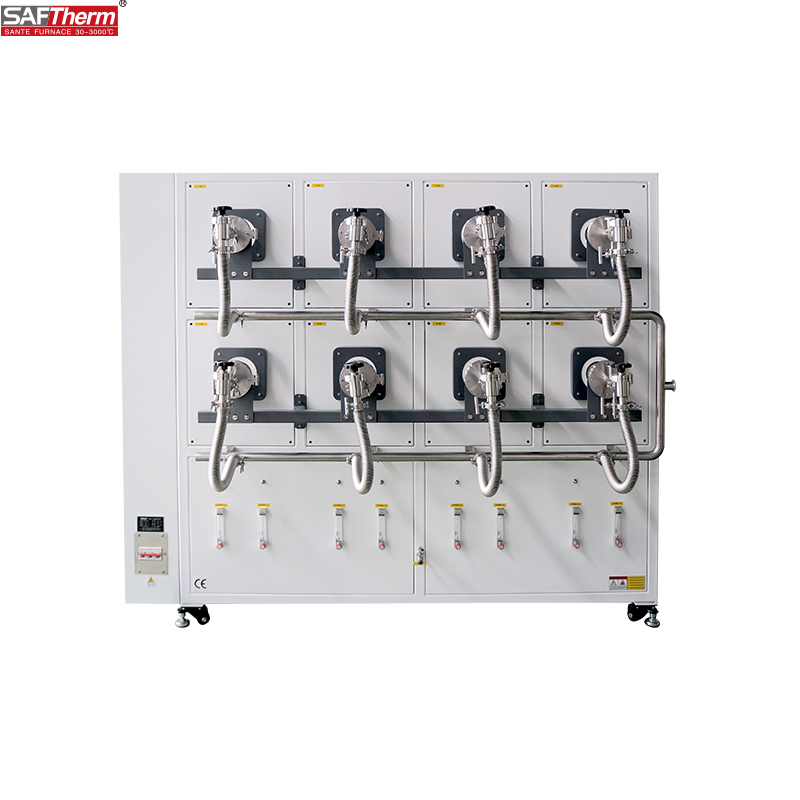

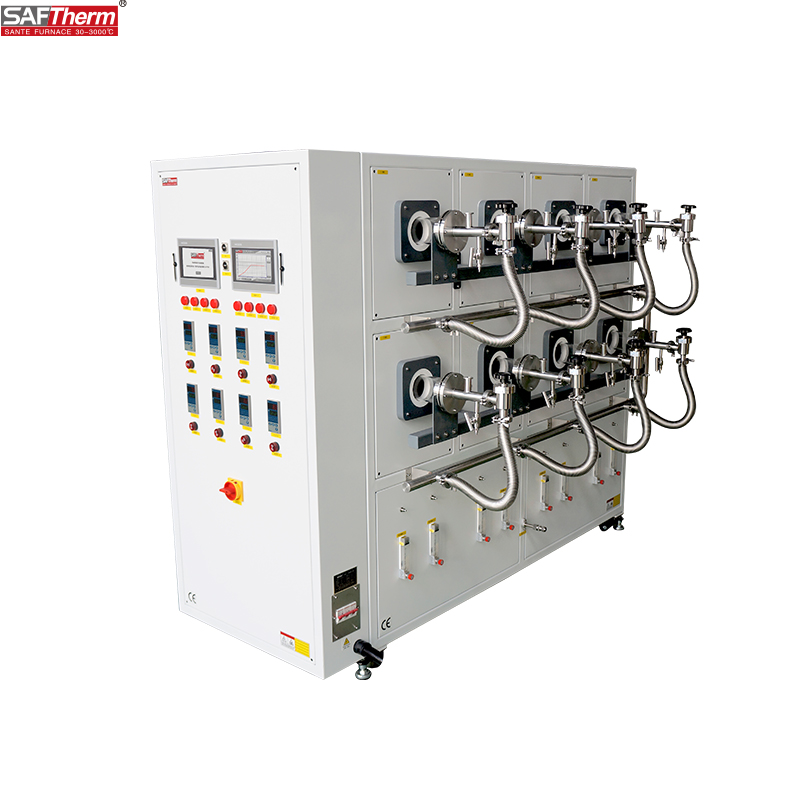

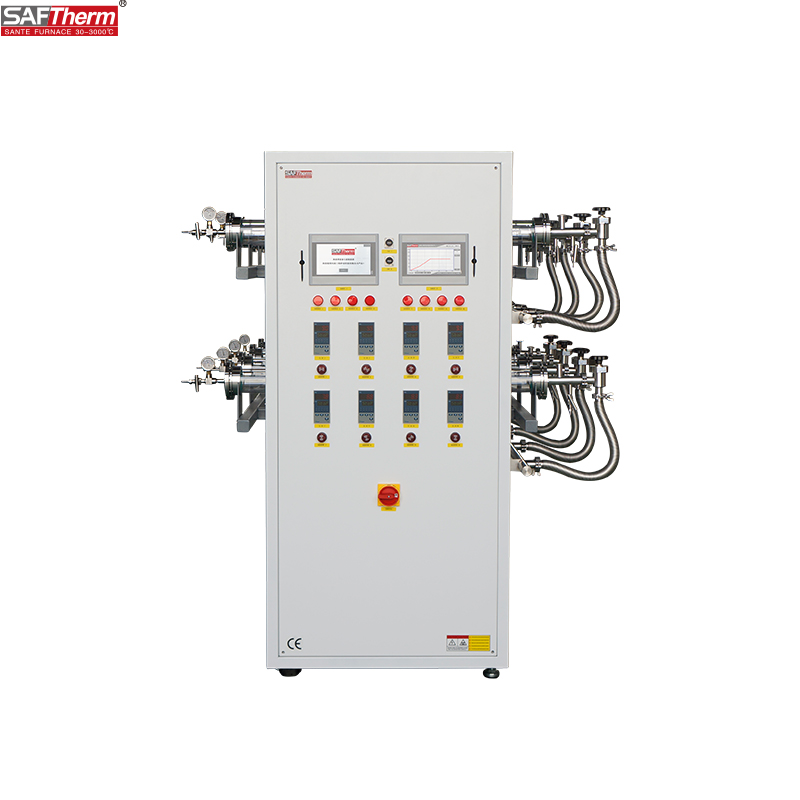

1200C High-Throughput Tube Furnace（STG-80-12-8）

1200℃ High-Throughput Tube Furnace This product is designed for high-throughput laboratory batch sample processing. Its eight independently temperature-controlled chambers feature a new lightweight ceramic fiber lining with embedded resistance wire for rapid heating and excellent temperature uniformity. and excellent temperature uniformity. It incorporates an integrated intelligent PID temperature controller with human-machine interface, supporting 15 sets of 30-segment programmable sequences for automatic heating and holding. Featuring high-quality quartz tubes with stainless steel sealing flanges, the furnace allows for pre-vacuuming of the tube or introduction of flowing protective atmospheres, enabling batch thermal processing of samples under vacuum or controlled atmospheres.

Translated with DeepL.com (free version)

Furnace shell

1. The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
2. The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low
3. Horizontal use mode, upper opening structure, easy to operate

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption

Heating system

1. High-quality HRE spiral resistance wire heating element is safely and firmly embedded on the surface of the furnace, and is heated by free heat radiation in the furnace cavity, which is energy-saving and efficient, and has a long service life
2. Ring heating by resistance wire to achieve good uniformity in the furnace

Program Controller

1. Advanced controllers that meet complex process requirements
2. Simple and direct operation, flexible programming
3. Programmable 30 program segments for a single curve
4. Over temperature and fault alarm, automatic safety protection
