1200°C Automatic Loading Rotary Tube Furnace

  • Model No. :STGX-60-12Pro
  • Quartz Tube(OD):Φ60×1200
  • Heating Zone Length : 440MM
  • Continuous Temp. :1100℃
  • Max Temp.:1200°C
  • Reactor Tube:Quartz Tube
  • Power Supply:220V/2kw
  • Heating Element: High Quality Alloy Resisance Wire(HRE)
  • Thermocouple: N type
  • Advantage
  • Related Cases
  • Related Products
Free Quote

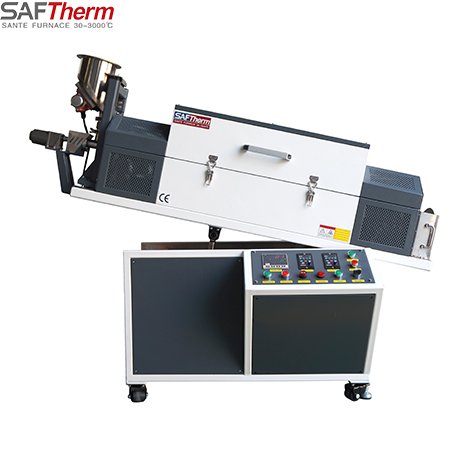

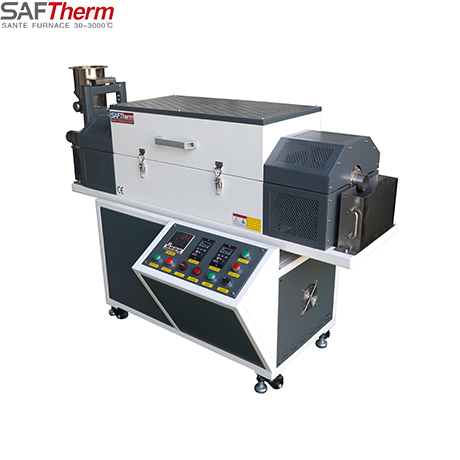

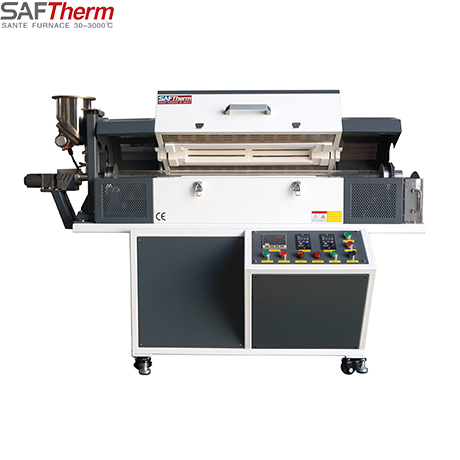

The automatic feeding and discharging rotary tube furnace is composed of a heating system, an automatic rotary mechanism, an automatic feeding and discharging kit and a furnace body tilting mechanism. The furnace tube can rotate 360° and the speed can be adjusted; Output selection and online adjustment of feeding speed, the furnace body can be tilted by 15°, and the end of the furnace tube is equipped with a material collection device, which can realize continuous small-batch production such as product research and development or product pilot test.


Furnace shell

  1. The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
  2. The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low
  3. Horizontal use mode, upper opening structure, easy to operate

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption

Heating system

1.High-quality HRE spiral resistance wire heating element is safely and firmly embedded on the inner surface of the furnace, thermal radiation heating in the furnace cavity, which is energy-saving and efficient, long service life.
2.Ring heating by resistance wire to achieve good uniformity in the furnace.

Temperature Control Panel

1.Advanced controllers that meet complex process requirements.
2.Programmable 30 program segments to realize automatic curve temperature control.
3.Over temperature and fault alarm, automatic safety protection.

Rotary And Automatic Feeding system

  1. The furnace tube adopts a gear transmission electric drive structure to rotate 360°, 12-20rpm adjustable, and the material is heated evenly in the furnace tube
  2. The furnace body can be tilted by electric drive, the tilt angle can be adjusted, and the material can enter and exit more smoothly.
  3. Equipped with an automatic screw feeding device, the feeding speed is adjustable, and there is material collection at the end to realize continuous material processing

Technical Parameter






Tube Size





Heating Zone





Max Temperature


Work Tempearture


Heating Element

 HRE high temperature alloy resistance wire

Chamber Material

Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration

Temperature accuracy



N type thermocouple

Temperature Controller

Intelligent microcomputer PID temperature control instrument, SSR voltage regulation control, PID parameter self-tuning function; programmable 32 program segments, program temperature rise, program heat preservation, program cooling

Heating Rate

1-20℃/min freely adjustment

Furnace Strcuture

Furnace temperature control integrated structure


Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically

Safety Protection

 The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators

Furnace Shell

 High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder


ISO9001   CE    SGS   TUV

Standard Accessories

1、Furnace Body 1 set  2、 Power cable 3 meter  3、Thermocouple 1 pc  4、Manual 1 pc 5、 Furnace Hook 1 pair

6、 High Temperature 1 pair


According to the output requirements of the actual material of the user, the customization of special specifications of the product can be realized


1. Furnace body 1 set
2. Temperature controller 1
3. Power cord 3 meters 1
4. Thermocouple 1
5. Instruction manual 1
6. Crucible pliers 1
7. High temperature gloves  1 pair
