1200°C Rotary Tube Furnace(STGX-40-12)

  • Model No. :STGX-40-12
  • Quartz Tube(OD):Φ40×1200
  • Heating Zone Length : 440MM
  • Continuous Temp. :1100℃
  • Max Temp.:1200°C
  • Reactor Tube:Quartz Tube
  • Power Supply:220V/2kw
  • Heating Element: High Quality Alloy Resisance Wire(HRE)
  • Thermocouple: N type
  • Advantage
  • Related Cases
  • Related Products
Free Quote

Description

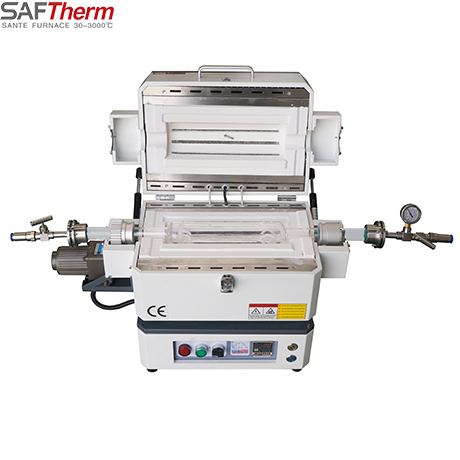

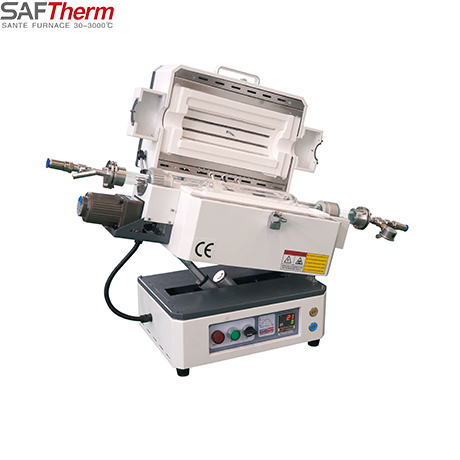

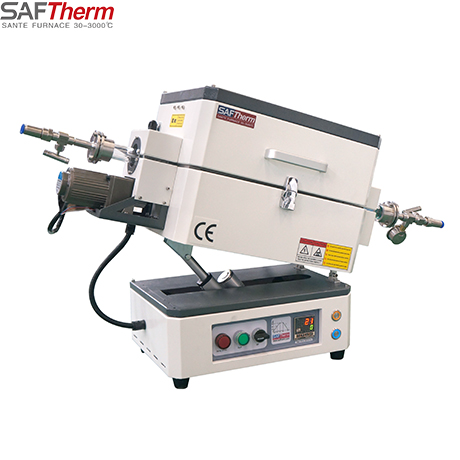

The rotary tube furnace is composed of a heating system, an automatic rotary mechanism kit and a furnace body tilting mechanism. The furnace tube can be rotated 360°, the speed can be adjusted, and the temperature field is uniform. Furnace body can be tilted 15°, making it easy to enter and exit materials.

Features

Furnace shell

  1. The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
  2. The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low
  3. Horizontal use mode, upper opening structure, easy to operate

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption

Heating system

1.High-quality HRE spiral resistance wire heating element is safely and firmly embedded on the inner surface of the furnace, thermal radiation heating in the furnace cavity, which is energy-saving and efficient, long service life.
2.Ring heating by resistance wire to achieve good uniformity in the furnace.

Temperature Control Panel

1.Advanced controllers that meet complex process requirements.
2.Programmable 30 program segments to realize automatic curve temperature control.
3.Over temperature and fault alarm, automatic safety protection.

Rotary System

1.The furnace tube adopts a gear transmission electric drive structure to rotate 360°, 12-20 rpm rotating speed, and the material is heated evenly in the furnace tube.
2.The furnace body can be tilted by electric drive, the tilt angle can be adjusted, and the material can enter and exit more smoothly.
3.With 304 stainless steel sealing flange, to obtain vacuum or atmosphere environment in the furnace tube.
4.High-quality quartz tubes, metal or alumina ceramic tubes can also be selected to adapt different working conditions.

Technical Parameter

Model

Heating zone

Tube size (mm)

Max temp

Working temp

 Voltage

Power

Heating element

Accuracy

STGX-40-12

440

Φ40×1200

1200℃

1100℃

220V

2KW

HRE

±1℃

STGX-60-12

440

Φ60×1200

1200℃

1100℃

220V

3KW

HRE

±1℃

STGX-80-12

440

Φ80×1200

1200℃

1100℃

220V

4KW

HRE

±1℃

STGX-100-12

440

Φ100×1200

1200℃

1100℃

220V

4KW

HRE

±1℃

STGX-120-12

600

Φ120×1200

1200℃

1100℃

220V

7KW

HRE

±1℃

STGX-150-12

600

Φ150×1200

1200℃

1100℃

380V

8KW

HRE

±1℃

STGX-60-14

300

Φ60×1000

1400℃

1350℃

220V

3KW

SIC

±1℃

STGX-80-14

300

Φ80×1000

1400℃

1350℃

220V

4KW

SIC

±1℃

STGX-60-17

300

Φ60×1000

1700℃

1600℃

220V

4KW

MoSi2

±1℃

STGX-80-17

300

Φ80×1000

1700℃

1600℃

220V

5KW

MoSi2

±1℃

Accessory

1. Furnace body 1 set
2. Temperature controller 1
3. Power cord 3 meters 1
4. Thermocouple 1
5. Instruction manual 1
6. Crucible pliers 1
7. High temperature gloves  1 pair
