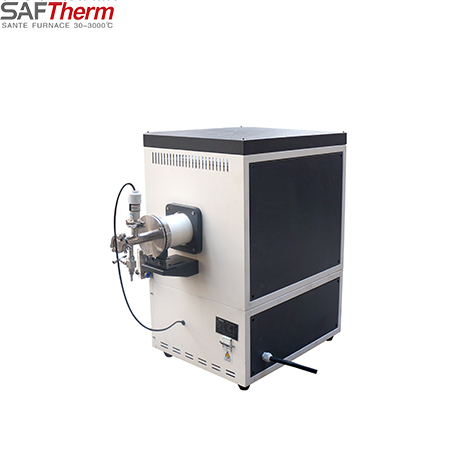

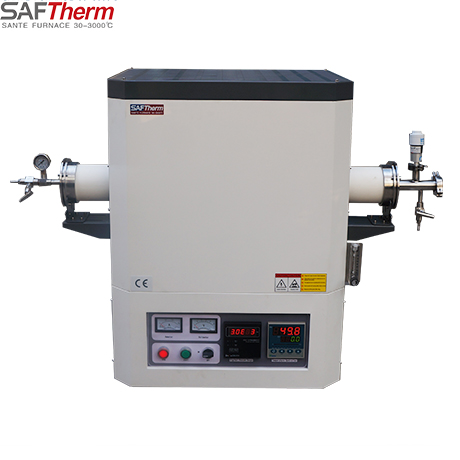

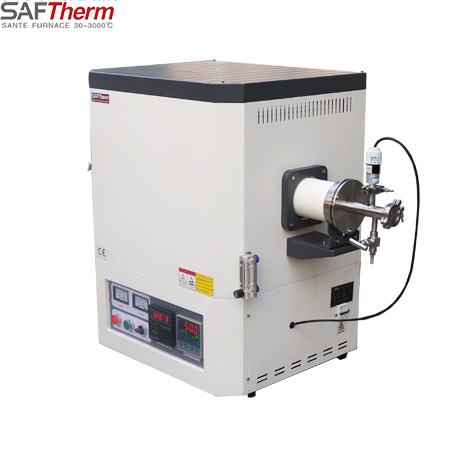

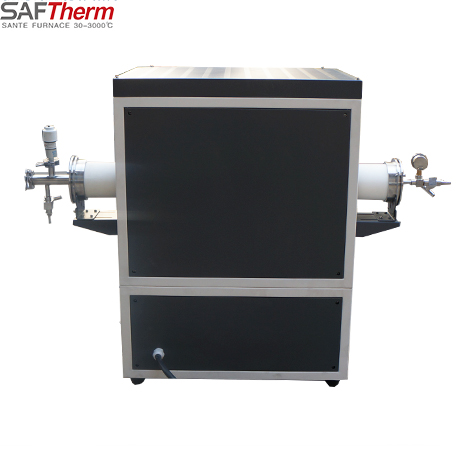

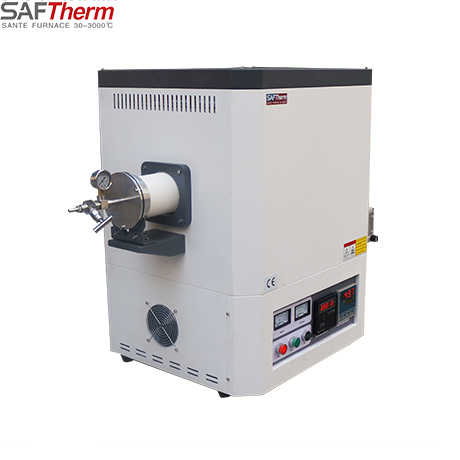

1700°C Single-zone Non-Split Tube Furnaces(STG-100-17)

  • Model No. :STG-100-17
  • Quartz Tube(OD):Φ100mm
  • Heating Zone Length : 300MM
  • Continuous Temp. :1600℃
  • Max Temp.:1700°C
  • Heating Element: Molybenum Disillicide(MoSi2)heater
  • Reactor Tube: Alumina Tube
  • Power Supply:220V/5kw
  • Temperature Precision: ±1℃
  • Thermocouple: B type
  • Advantage
  • Related Cases
  • Related Products
Free Quote

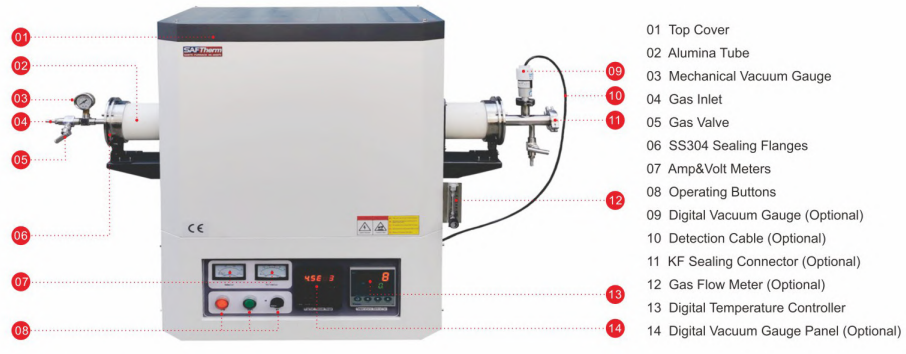

Description

1700℃ single-zone tube furnace is used in sintering and high temperature heat treatment of metal materials, ceramic materials, nano materials, semiconductor materials, powder metallurgy and other new materials in colleges and universities, scientific research institutes, factories and enterprises, petrochemical, aerospace and other industries.

Features

Furnace shell

  1. The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
  2. The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low
  3. Horizontal use mode, easy to operate

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption

Heating system

  1. The high-quality Mosi2 heating element is safely and firmly installed on both sides of the furnace, and is heated by free heat radiation in the furnace cavity, which is energy-saving and efficient, and has a long service life
  2. Heating on both sides (left and right sides), so as to achieve good uniformity in the furnace

Temperature Control Panel

  1. PID and SSR control mode, precise temperature control
  2. International standardized B-type Ni - Cr silicon thermocouple, temperature range 0-1800°C, long service life
  3. Equipped with heating indicator light and over-temperature alarm buzzer

Program Controller

  1. Advanced controllers that meet complex process requirements
  2. Simple and direct operation, flexible programming
  3. Programmable 30 program segments
  4. Over temperature and fault alarm, automatic safety protection

Vacuum Atmosphere Function

1.With 304 stainless steel sealing flange to obtain vacuum or atmosphere in the furnace tube

  1. High-quality quartz glass working tube, and metal or corundum working tube can also be selected to adapt to different working conditions

Technical Parameter

Model

STG-40-17

STG-60-17

STG-80-17

STG-100-17

Tube size

Φ40 x 900mm

Φ60 x 900mm

Φ80 x 900mm

Φ100 x 900mm

Max  Temperature

1700℃

Working temperature

1600℃

Heating zone size

300mm

Power supply

220V/3KW

220V/4KW

220V/5KW

220V/5KW

Heating element

MoSi2

Furnace material

Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration

Furnace tube material

High purity corundum tube

Temperature control accuracy

±1℃

Temperature measuring element

B-type national standard platinum rhodium thermocouple

Temperature control instrument

Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 4 groups of 8 program segments, program temperature rise, program heat preservation, program cooling

Heating rate

1-15℃/min free adjustment

Furnace structure

Furnace temperature control integrated structure; double-layer shell, air circulation and heat insulation

Sealing performance

Both ends of the furnace tube are equipped with stainless steel metal flanges, matched with high-temperature PTFE gaskets, which can work under vacuum with a vacuum degree of ≤5pa (rotary vane vacuum pump)

atmosphere performance

There are air inlets and outlets at both ends of the flange. The pressure gauge is installed on the metal flange. The precision needle valve can adjust the air intake and output, and can be fed with protective gases such as nitrogen, argon, and hydrogen.

equipment protection

Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically

safety protection

The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators

shell

High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder

Quality Certification

ISO9001   CE    SGS   TUV

The standard configuration

1. 1 furnace body 2. 1 temperature controller 3. Power cord 3 meters 4. 1 thermocouple 5. 1 manual

6. One furnace hook 7. One pair of high temperature gloves 8. Two pipe plugs 9. One set of sealing flange

Optional accessories

1. Optional rotary vane vacuum pump (vacuum degree ≤ 5pa) 2. Optional digital vacuum gauge ((1.0×105-1.0×10-1pa)) 3. Optional float flowmeter (range 60-600ml/min) 4 , optional corundum boat

Accessory

1. Furnace body 1 set
2. Temperature controller 1
3. Power cord 3 meters 1
4. Thermocouple 1
5. Instruction manual 1
6. Crucible pliers 1
7. High temperature gloves  1 pair
