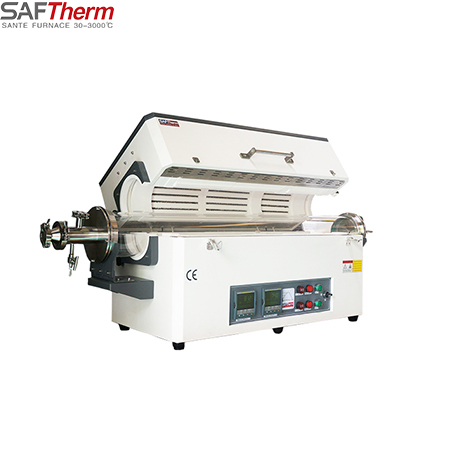

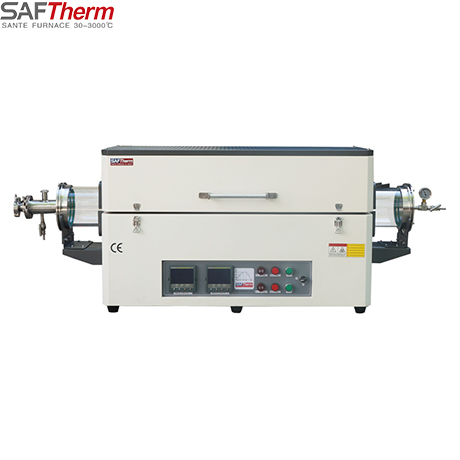

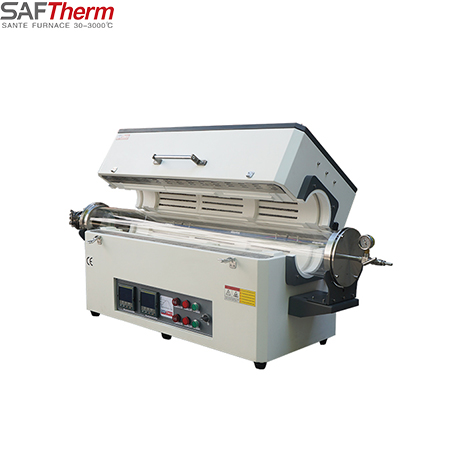

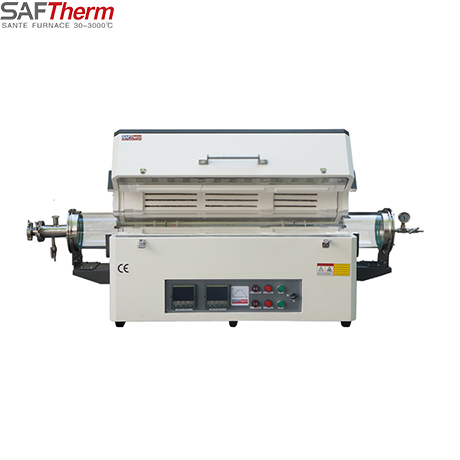

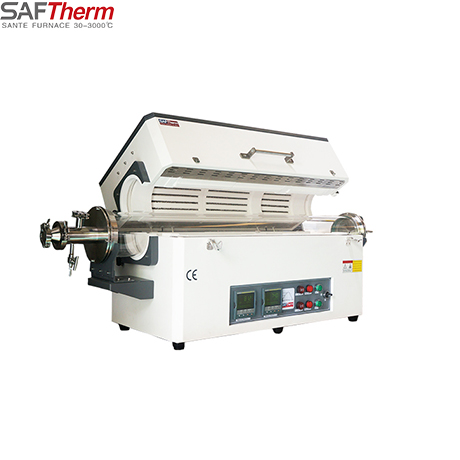

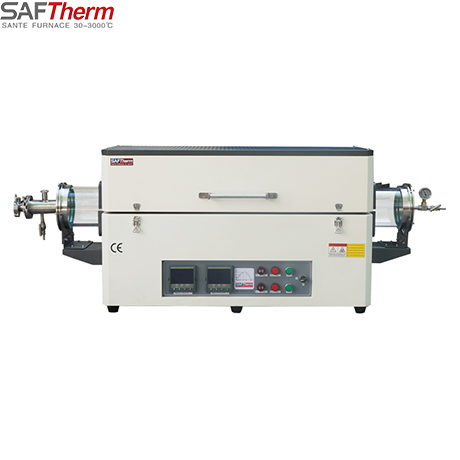

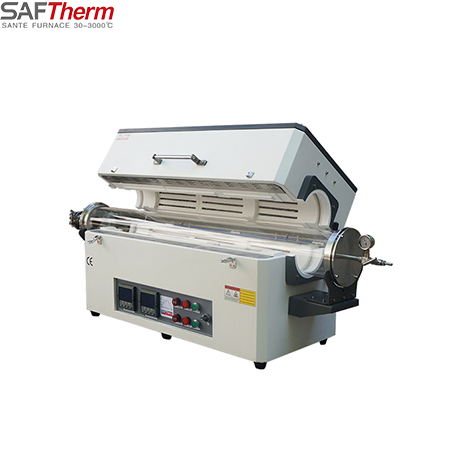

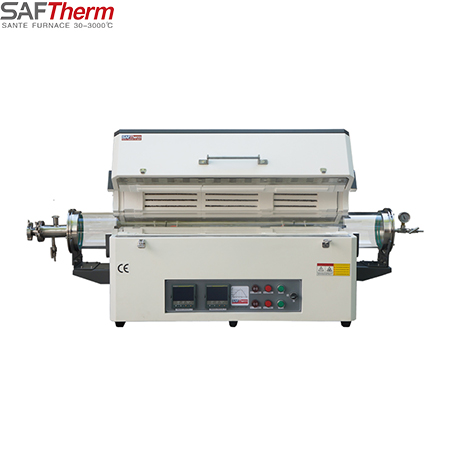

1200°C Double-zone Tube Furnace

  • Model No. :STG-100-12-2
  • Quartz Tube(OD):Φ100mm
  • Heating Zone Length : 300+300MM
  • Continuous Temp. :1200℃
  • Max Temp.:1100°C
  • Heating Element:High Quality Alloy Resistance Wire(HRE)
  • Power Supply:220V/5.2kw
  • Temperature Precision: ±1℃
  • Thermocouple: N type
  • Advantage
  • Related Cases
  • Related Products
Free Quote

Description

1200 ℃ tube furnace is used in sintering and high temperature heat treatment of metal materials, ceramic materials, nano materials, semiconductor materials, powder metallurgy and other new materials in colleges and universities, scientific research institutes, factories and enterprises, petrochemical, aerospace and other industries.

Features

Furnace shell

  1. The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
  2. The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low
  3. Horizontal use mode, upper opening structure, easy to operate

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption

Heating system

  1. High-quality HRE heating element, free heat radiation heating in the furnace cavity, energy saving and high efficiency, long service life
  2. The heating element is heated in a ring or on two sides, so as to achieve good uniformity in the furnace
  3. Dual zone heating, single temperature zone can control temperature independently, better temperature uniformity

Temperature Control Panel

  1. PID and SSR control mode, precise temperature control
  2. Internationally standardized N-type nickel-chromium-silicon thermocouple with a temperature measurement range of 0-1300℃ and a long service life
  3. The furnace door is equipped with a door-opening power-off safety protection switch

Program Controller

  1. PID with SSR/SCR control mode, precise temperature control
  2. International standard thermocouple, long service life
  3. Equipped with heating indicator light and over-temperature alarm buzzer

Vacuum Atmosphere Function

1.With 304 stainless steel sealing flange to obtain vacuum or atmosphere in the furnace tube

  1. High-quality quartz glass working tube, and metal or corundum working tube can also be selected to adapt to different working conditions

Technical Parameter

Product Item

Heating Zone(mm)

Tube Size (mm)

Max Temperature

Work Temperature

Voltage

Power

Heating Element

Temperature Accuracy

STG-40-12-2

300+300

Φ40×1200

1200℃

1100℃

220V

3.6KW

HRE

±1℃

STG-60-12-2

300+300

Φ60×1200

1200℃

1100℃

220V

5.2KW

HRE

±1℃

STG-80-12-2

300+300

Φ80×1200

1200℃

1100℃

220V

5.2KW

HRE

±1℃

STG-100-12-2

300+300

Φ100×1200

1200℃

1100℃

220V

5.2KW

HRE

±1℃

STG-40-14-2

300+300

Φ40×1200

1400℃

1350℃

220V

4KW

SIC

±1℃

STG-60-14-2

300+300

Φ60×1200

1400℃

1350℃

220V

6KW

SIC

±1℃

STG-80-14-2

300+300

Φ80×1200

1400℃

1350℃

380V

8KW

SIC

±1℃

STG-100-14-2

300+300

Φ100×1200

1400℃

1350℃

380V

10KW

SIC

±1℃

STG-40-17-2

300+300

Φ40×1200

1700℃

1600℃

220V

6KW

MoSi2

±1℃

STG-60-17-2

300+300

Φ60×1200

1700℃

1600℃

380V

8KW

MoSi2

±1℃

STG-80-17-2

300+300

Φ80×1200

1700℃

1600℃

380V

10KW

MoSi2

±1℃

STG-100-17-2

300+300

Φ100×1200

1700℃

1600℃

380V

12KW

MoSi2

±1℃

Accessory

1. Furnace body 1 set
2. Temperature controller 1
3. Power cord 3 meters 1
4. Thermocouple 1
5. Instruction manual 1
6. Crucible pliers 1
7. High temperature gloves  1 pair

Advantage

  • 1 Year Warranty We can provide very professional commercial support, technical support and document support
  • 22 Years Experience We have more than 22 years of experience in Electirc Heating Equipment,Excellent temperature field uniformity is our strength
  • R&D Design Team Professional design and development team, to provide you with professional and reasonable heat treatment solutions
  • Quality Control Rigorous quality control process, each process process traceable, to provide customers with high quality products
