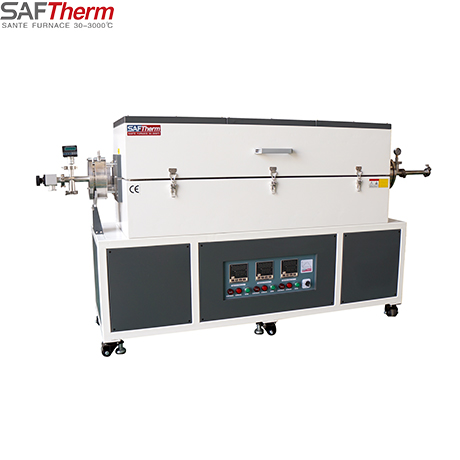

1200°C Three Zone Horizontal Tube Furnace(STG-150-12-3)

  • Model No. :STG-150-12-3
  • Quartz Tube(OD):Φ150mm
  • Heating Zone Length : 300+300+300MM
  • Continuous Temp. :1100℃
  • Max Temp.:1200°C
  • Reactor Tube:Quartz Tube
  • Power Supply:380V/7.8kw
  • Heating Element: 1500 Type Polycrystal Alumina Ceramic Fiber
  • Thermocouple: N type
  • Advantage
  • Related Cases
  • Related Products
Free Quote

Description

The three heating zone tube furnace is used in sintering and high-temperature heat treatment in the fields of metal materials, ceramic materials, nano-materials, semiconductor materials, powder metallurgy and other new materials in colleges and universities, scientific research institutes, factories and enterprises, petrochemical, aerospace and other industries .

Features

Furnace shell

  1. The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
  2. The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low

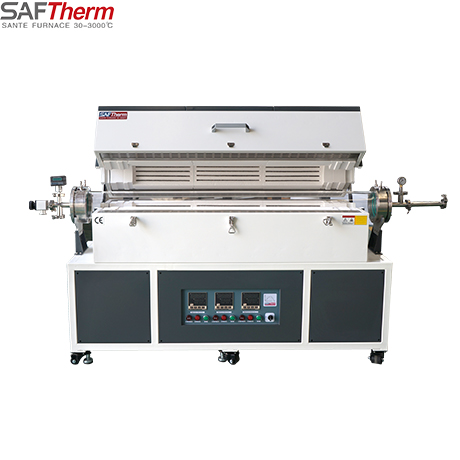

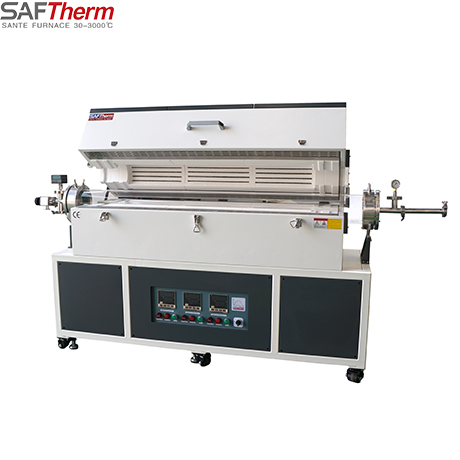

  3. Horizontal use mode, upper opening structure, easy to operate

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption

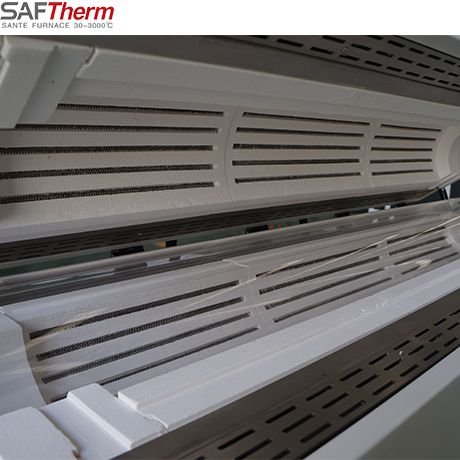

Heating system

  1. High-quality metal and ceramic heating element, free heat radiation heating in the furnace cavity, energy saving and high efficiency, long service life
  2. The heating element is heated in a ring or on two sides, so as to achieve good uniformity in the furnace
  3. Three heating zone, single temperature zone can control temperature independently, better temperature uniformity

Temperature Control Panel

  1. PID with SSR/SCR control mode, precise temperature control
  2. International standard thermocouple, long service life
  3. Equipped with heating indicator light and over-temperature alarm buzzer

Program Controller

  1. Advanced controllers that meet complex process requirements
  2. Simple and direct operation, flexible programming
  3. Programmable 30 program segments
  4. Over temperature and fault alarm, automatic safety protection

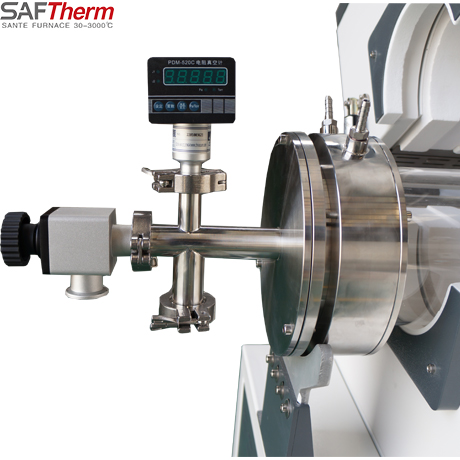

Vacuum Atmosphere Function

  1. With 304 stainless steel sealing flange to obtain vacuum or atmosphere in the furnace tube
  2. High-quality quartz glass working tube, or metal or alumina working tube can be selected to adapt to different working conditions

Technical Parameter

Model Item Heating Zone(mm) Tube Size (mm) Max Temperature Work Temperature Voltage Power Heating Element Temperature Accuracy
STG-40-12-3 300+300+300 Φ40×1500 1200℃ 1100℃ 220V 5.4KW HRE ±1℃
STG-60-12-3 300+300+300 Φ60×1500 1200℃ 1100℃ 380V 7.8KW HRE ±1℃
STG-80-12-3 300+300+300 Φ80×1500 1200℃ 1100℃ 380V 7.8KW HRE ±1℃
STG-100-12-3 300+300+300 Φ100×1500 1200℃ 1100℃ 380V 7.8KW HRE ±1℃
STG-40-14-3 200+200+200 Φ40×1200 1400℃ 1350℃ 220V 5KW SIC ±1℃
STG-60-14-3 200+200+200 Φ60×1200 1400℃ 1350℃ 380V 8KW SIC ±1℃
STG-80-14-3 200+200+200 Φ80×1200 1400℃ 1350℃ 380V 9KW SIC ±1℃
STG-100-14-3 200+200+200 Φ100×1200 1400℃ 1350℃ 380V 12KW SIC ±1℃
STG-40-17-3 200+200+200 Φ40×1200 1700℃ 1600℃ 380V 6KW MoSi2 ±1℃
STG-60-17-3 200+200+200 Φ60×1200 1700℃ 1600℃ 380V 9KW MoSi2 ±1℃
STG-80-17-3 200+200+200 Φ80×1200 1700℃ 1600℃ 380V 12KW MoSi2 ±1℃
STG-100-17-3 200+200+200 Φ100×1200 1700℃ 1600℃ 380V 12KW MoSi2 ±1℃

Accessory

1. Furnace body 1 set
2. Temperature controller 1
3. Power cord 3 meters 1
4. Thermocouple 1
5. Instruction manual 1
6. Crucible pliers 1
7. High temperature gloves  1 pair
