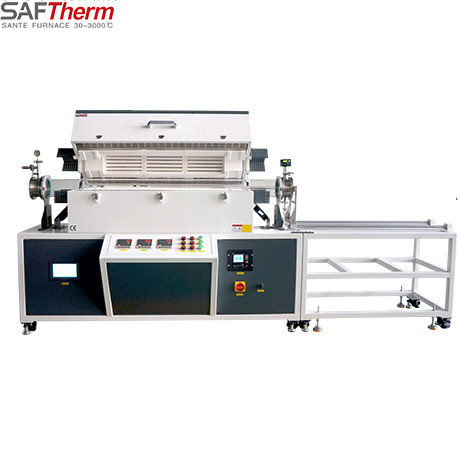

The three heating zone tube furnace is used in sintering and high-temperature heat treatment in the fields of metal materials, ceramic materials, nano-materials, semiconductor materials, powder metallurgy and other new materials in colleges and universities, scientific research institutes, factories and enterprises, petrochemical, aerospace and other industries.
The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low
Horizontal use mode, upper opening structure, easy to operate
Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption
High-quality metal and ceramic heating element, free heat radiation heating in the furnace cavity, energy saving and high efficiency, long service life
The heating element is heated in a ring or on two sides, so as to achieve good uniformity in the furnace
Three heating zone, single temperature zone can control temperature independently, better temperature uniformity
Temperature Control Panel
PID with SSR/SCR control mode, precise temperature control
International standard thermocouple, long service life
Equipped with heating indicator light and over-temperature alarm buzzer
Advanced controllers that meet complex process requirements
Simple and direct operation, flexible programming
Programmable 30 program segments
Over temperature and fault alarm, automatic safety protection
Vacuum Atmosphere Function
With 304 stainless steel sealing flange to obtain vacuum or atmosphere in the furnace tube
High-quality quartz glass working tube, or metal or alumina working tube can be selected to adapt to different working conditions
In order to provide customers with a better experience and thermal processing solutions, our company’s R&D team has made concerted efforts to customize large-scale elevator furnaces(lift furnace) for customers.
