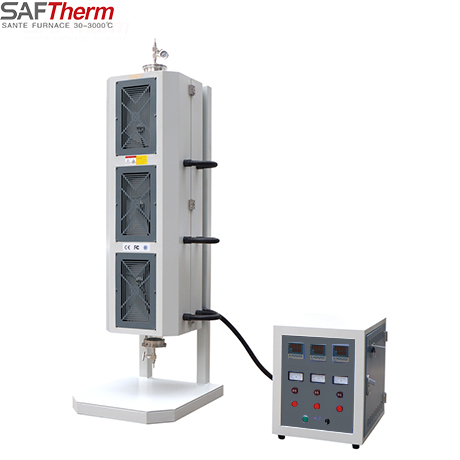

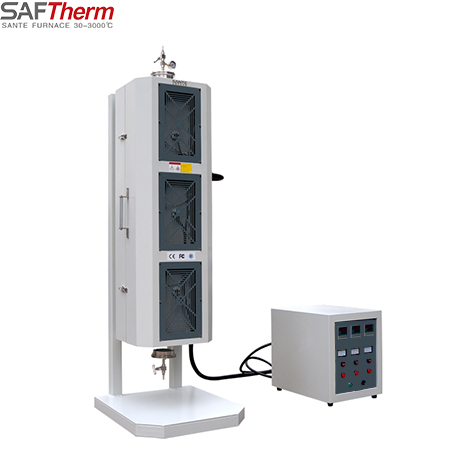

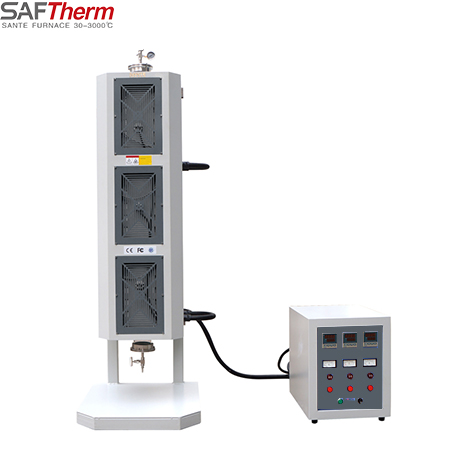

1200°C Three Zone Vertical Tube Furnace

  • Model No. :STGL-60-12-3
  • Quartz Tube(OD):Φ60x1500mm
  • Heating Zone Length : 300+300+300MM
  • Continuous Temp. :1100℃
  • Max Temp.:1200°C
  • Reactor Tube:Quartz Tube
  • Power Supply:220V/7.8kw
  • Heating Element: High Quality Alloy Resistance Wire
  • Thermocouple: N type
  • Advantage
  • Related Cases
  • Related Products
Free Quote

Description

1200℃ three zone vertical tube furnace is used in sintering and high temperature heat treatment of metal materials, ceramic materials, nano materials, semiconductor materials, powder metallurgy and other new materials in colleges and universities, scientific research institutes, factories and enterprises, petrochemical, aerospace and other industries.

Features

Furnace shell

  1. The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
  2. The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low

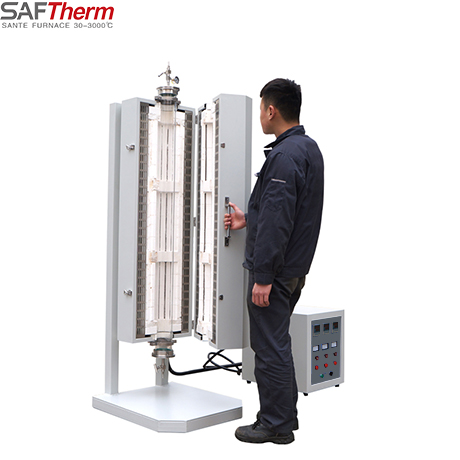

  3. Vertical use mode, side open cover structure, easy to operate

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption

Heating system

  1. High-quality HRE spiral resistance wire heating element is safely and firmly embedded on the surface of the furnace, and is heated by free heat radiation in the furnace cavity, which is energy-saving and efficient, and has a long service life
  2. Ring heating by resistance wire to achieve good uniformity in the furnace
  3. Divided into three temperature zones, each temperature zone can be heated independently

Temperature Control Panel

  1. PID with SSR/SCR control mode, precise temperature control
  2. Internationally standardized N-type nickel-chromium-silicon thermocouple with a temperature measurement range of 0-1300°C and a long service life
  3. The furnace door is equipped with a door-opening power-off safety protection switch

Program Controller

  1. Advanced controllers that meet complex process requirements
  2. Simple and direct operation, flexible programming
  3. Programmable 30 program segments for a single curve
  4. Over temperature and fault alarm, automatic safety protection

Vacuum Atmosphere Function

  1. With 304 stainless steel sealing flange to obtain vacuum or atmosphere in the furnace tube
  2. High-quality alumina working tube, or metal or quartz glass working tube can be selected to adapt to different working conditions

Technical Parameter

Item No

STGL-40-12-3

STG-60-12-3

STG-80-12-3

STG-100-12-3

Tube Size

Φ40 x 1500mm

Φ60 x 1500mm

Φ80 x 1500mm

Φ100 x 1500mm

Rated Temperature

1200℃

Work Temperature

1100℃

Heating Zone

300+300+300mm

Voltage/Power

220V/5.4KW

220V/7.8KW

380V/7.8KW

380V/7.8KW

Heating Element

                  HRE high temperature alloy resistance wire

Chamber Material

Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration

Tube Material

Quartz Tube

Temperature accuracy

±1℃

Thermocouple

N type thermocouple

Temperature Controller

Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 4 groups of 8 program segments, program temperature rise, program heat preservation, program cooling

Heating Rate

1-25℃/min freely adjust

Furnace Structure

Furnace temperature control integrated structure; double-layer shell, air circulation and heat insulation

Sealing Function

Both ends of the furnace tube are equipped with stainless steel metal flanges, matched with high-temperature PTFE gaskets, which can work under vacuum with a vacuum degree of ≤5pa (rotary vane vacuum pump)

Atmopshere Function

There are air inlets and outlets at both ends of the flange. The pressure gauge is installed on the metal flange. The precision needle valve can adjust the air intake and output, and can be fed with protective gases such as nitrogen, argon, and hydrogen.

Furnace Protection

Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically

Safety Protection

The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators

Shell

High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder

Certificate

ISO9001   CE    SGS   TUV

Standard Accessories

1. Furnace body 2. Temperature controller  3. Power cord 3 meters 4. Thermocouple 5. Instruction manual 6. Furnace hook7. High temperature gloves  8. Pipe plug  9. Sealing flange

Optional Accessories

 1. Optional rotary vane vacuum pump (vacuum degree ≤ 5pa) 2. Optional digital vacuum gauge ((1.0×105-1.0×10-1pa)) 3. Optional float flowmeter (range 60-600ml/min) 4 , optional corundum boat

Accessory

1. Furnace body 1 set
2. Temperature controller 1
3. Power cord 3 meters 1
4. Thermocouple 1
5. Instruction manual 1
6. Crucible pliers 1
7. High temperature gloves  1 pair

Advantage

  • 1 Year Warranty We can provide very professional commercial support, technical support and document support
  • 22 Years Experience We have more than 22 years of experience in Electirc Heating Equipment,Excellent temperature field uniformity is our strength
  • R&D Design Team Professional design and development team, to provide you with professional and reasonable heat treatment solutions
  • Quality Control Rigorous quality control process, each process process traceable, to provide customers with high quality products
