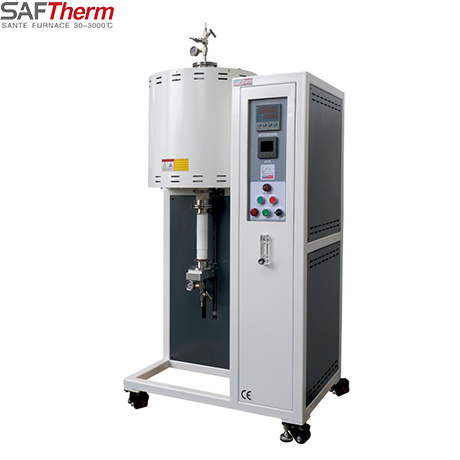

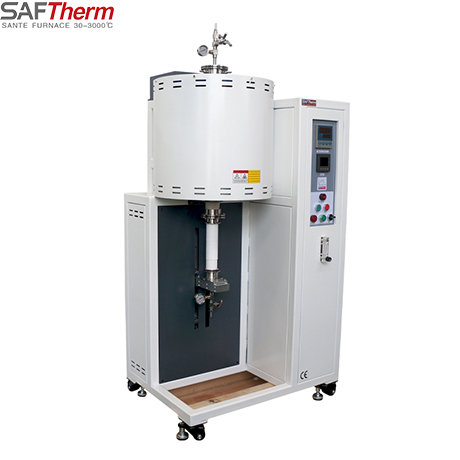

1400°C Single Zone Vertical Tube Furnace(STGL-60-14)

  • Model No. :STGL-60-14
  • Quartz Tube(OD):Φ60x1000mm
  • Heating Zone Length : 300MM
  • Continuous Temp. :1300℃
  • Max Temp.:1400°C
  • Reactor Tube:Alumina Tube
  • Power Supply:220V/3kw
  • Heating Element: Silicon Carbide Rod(SIC) Heater
  • Thermocouple: S type
  • Advantage
  • Related Cases
  • Related Products
Free Quote

Description

1400°C single zone vertical tube furnace is used in the sintering and processing of new materials such as metal materials, ceramic materials, nano materials, semiconductor materials, powder metallurgy and other industries in colleges and universities, scientific research institutes, factories and enterprises, petrochemicals, aerospace and other industries. High temperature heat treatment.

Features

Furnace shell

  1. The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
  2. The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low
  3. Vertical use mode, side open cover structure, easy to operate

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption

Heating system

  1. High-quality metal and ceramic heating element, free heat radiation heating in the furnace cavity, energy saving and high efficiency, long service life
  2. The heating element is heated in a ring or on two sides, so as to achieve good uniformity in the furnace
  3. A single temperature zone can be independently controlled, and the temperature uniformity is better

Temperature Control Panel

  1. PID with SSR/SCR control mode, precise temperature control
  2. International standard thermocouple, long service life
  3. Equipped with heating indicator light and over-temperature alarm buzzer

Program Controller

  1. Advanced controllers that meet complex process requirements
  2. Simple and direct operation, flexible programming
  3. Programmable 30 program segments
  4. Over temperature and fault alarm, automatic safety protection

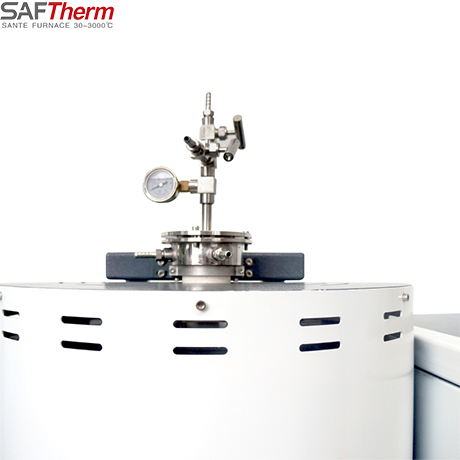

Vacuum Atmosphere Function

  1. With 304 stainless steel sealing flange to obtain vacuum or atmosphere in the furnace tube
  2. High-quality alumina working tube, or metal or quartz glass working tube can be selected to adapt to different working conditions

Technical Parameter

Item No

Heating Zone(mm)

Tube Size (mm)

Max Temperature

Work Temperature

Voltage

Power

Heating Element

Temperature Accuracy

STGL-40-12

300

Φ40×900

1200℃

1100℃

220V

1.8KW

HRE

±1℃

STGL-60-12

300

Φ60×900

1200℃

1100℃

220V

2.6KW

HRE

±1℃

STGL-80-12

300

Φ80×900

1200℃

1100℃

220V

2.6KW

HRE

±1℃

STGL-100-12

300

Φ100×900

1200℃

1100℃

220V

2.6KW

HRE

±1℃

STGL-40-14

300

Φ40×900

1400℃

1350℃

220V

2KW

SIC

±1℃

STGL-60-14

300

Φ60×900

1400℃

1350℃

220V

3KW

SIC

±1℃

STGL-80-14

300

Φ80×900

1400℃

1350℃

220V

4KW

SIC

±1℃

STGL-100-14

300

Φ100×900

1400℃

1350℃

220V

5KW

SIC

±1℃

STGL-40-17

300

Φ40×900

1700℃

1600℃

220V

3KW

MoSi2

±1℃

STGL-60-17

300

Φ60×900

1700℃

1600℃

220V

4KW

MoSi2

±1℃

STGL-80-17

300

Φ80×900

1700℃

1600℃

220V

5KW

MoSi2

±1℃

STGL-100-17

300

Φ100×900

1700℃

1600℃

220V

5KW

MoSi2

±1℃

Accessory

1. Furnace body 1 set
2. Temperature controller 1
3. Power cord 3 meters 1
4. Thermocouple 1
5. Instruction manual 1
6. Crucible pliers 1
7. High temperature gloves  1 pair
