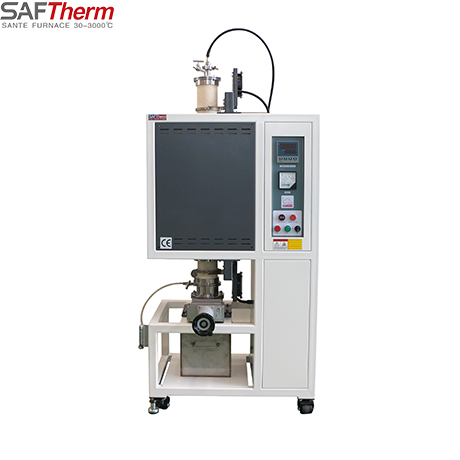

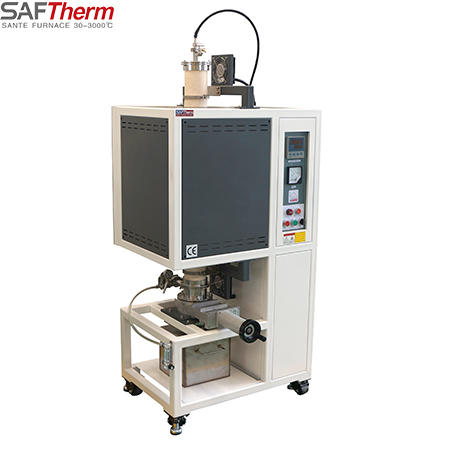

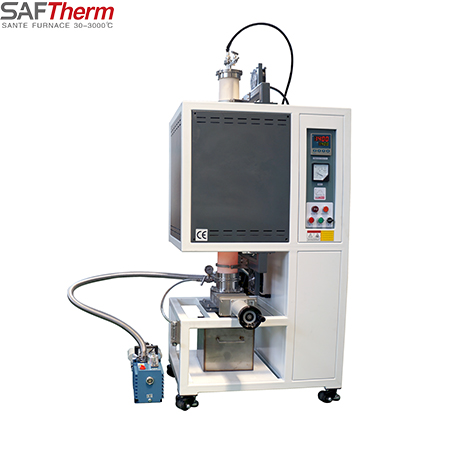

1400°C Split Vertical Quench Furnace(STGZ-100-14)

  • Model No. :STGZ-100-14
  • Quartz Tube(OD):Φ100x1000mm
  • Heating Zone Length : 300MM
  • Continuous Temp. :1300℃
  • Max Temp.:1400°C
  • Reactor Tube:Alumina Tube
  • Power Supply:220V/5kw
  • Heating Element:Silicon Carbide Rod (SIC) Heater
  • Thermocouple: S type
  • Advantage
  • Related Cases
  • Related Products
Free Quote

Description

1200°C Split Vertical Quench Furnace with fluid bed turns out perfect results each time you use it. The Furnace Compact, portable and lightweight design.Split furnace chamber for fast and easy tube access.Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.

Features

Furnace shell

  1. The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
  2. The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low
  3. Vertical use mode, side open cover structure, easy to operate

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption

Heating system

1. High-quality heating element, free heat radiation heating in the furnace cavity, energy saving and high efficiency, long service life

2. The heating element is evenly arranged around the furnace, so as to achieve good uniformity in the furnace

Temperature Control Panel

1. Advanced controllers that meet complex process requirements

2. Programmable 30 program segments to realize automatic curve temperature control

3. Over temperature and fault alarm, automatic safety protection

Program Controller

  1. Advanced controllers that meet complex process requirements
  2. Simple and direct operation, flexible programming
  3. Programmable 30 program segments
  4. Over temperature and fault alarm, automatic safety protection

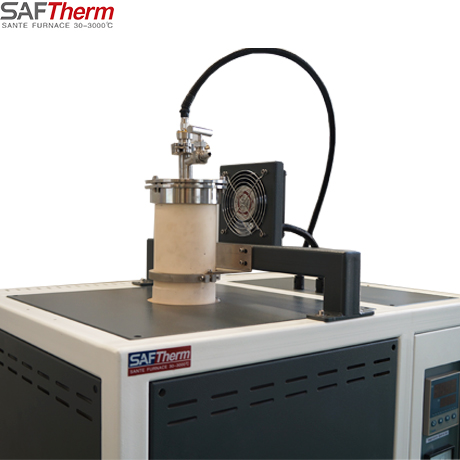

Electromagnetic hanging sample systerm

1. There is a hook on the sealing flange on the upper part of the furnace tube. The hook is connected to the electromagnet, and the electromagnet is controlled by a relay.

2. There is a sealing flange at the lower part of the furnace body, and the high-vacuum baffle valve is connected with the water tank or oil tank at the bottom to realize the high-temperature quenching process

3. The sealing flange with 304 stainless steel can obtain the vacuum or atmosphere environment in the furnace tube

4. High-quality quartz working tubes, metal or alumina ceramic working tubes can also be selected to adapt to different working conditions

Technical Parameter

Product ModelHeating zone(mm)Furnace Tube Size (mm)Maximum TemperatureWorking TemperatureVoltagePowerHeating elementTemperature Control Accuracy
STGZ-60-12440Φ60×10001200℃1100℃220V3KWHRE±1℃
STGZ-80-12440Φ80×10001200℃1100℃220V4KWHRE±1℃
STGZ-100-12440Φ100×10001200℃1100℃220V4KWHRE±1℃
STGZ-150-12500Φ150×12001200℃1100℃380V8KWHRE±1℃
STGZ-60-14300Φ60×10001400℃1350℃220V3KWSIC±1℃
STGZ-80-14300Φ80×10001400℃1350℃220V4KWSIC±1℃
STGZ-100-14300Φ100×10001400℃1350℃220V5KWSIC±1℃
STGZ-60-17300Φ60×10001700℃1600℃220V4KWMoSi2±1℃
STGZ-80-17300Φ80×10001700℃1600℃220V5KWMoSi2±1℃
STGZ-100-17300Φ100×10001700℃1600℃220V5KWMoSi2±1℃

Accessory

1. Furnace body 1 set
2. Temperature controller 1
3. Power cord 3 meters 1
4. Thermocouple 1
5. Instruction manual 1
6. Crucible pliers 1
7. High temperature gloves  1 pair
