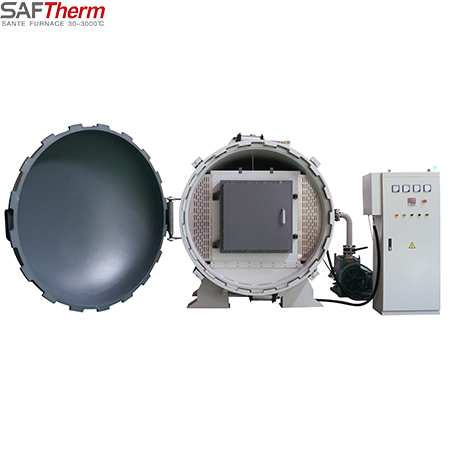

1200°C Vacuum Atmosphere Furnaces

  • Model No. :STZ-288-12
  • Inner Dimension(WxDxH MM):600x800x600
  • Continuous Temp. :1100℃
  • Max Temp.:1200°C
  • Power Supply:380V/7.5kw
  • Heating Element: High Quality Alloy Resisance Wire(HRE)
  • Temp Precision:±1°C
  • Thermocouple: N type
  • Advantage
  • Related Cases
  • Related Products
Free Quote

Description

The 1200°C vacuum atmosphere box-type resistance furnace mainly provides a high-temperature heat treatment environment for industry laboratories such as colleges and universities, scientific research institutes, factories and enterprises, and can be used in the fields of new materials such as metal materials, ceramic materials, nano-materials, and semiconductor materials.

Features

Furnace shell

1、The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and anti- corrosion.
2、 Sturdy metal tank shell structure with low furnace surface temperature
3、Furnace door with flange type sealing structure and manual screw compression with side door way for easier operating

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and other high-quality insulation board heat shielding backing, which does not contain asbestos components, low heat loss and low energy consumption

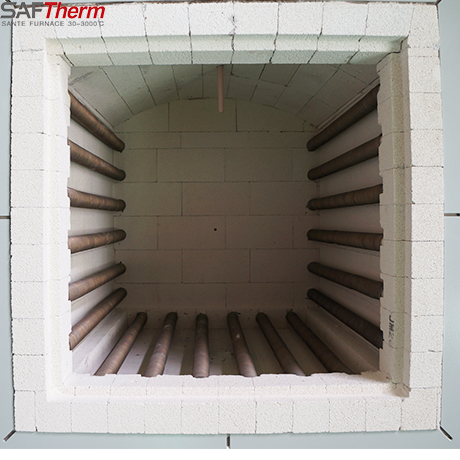

Heating system

1、High-quality HRE spiral resistance wire heating element, safely and firmly embedded in the furnace surface, free heat radiation heating in the furnace cavity, energy saving and high efficiency with long service life
2、Heating on three sides (left and right and furnace bottom) for good homogeneity in the furnace
3、 Silicon carbide base plate covers and protects the bottom heating element, high mechanical strength, good thermal conductivity, while providing horizontal load bearing

Temperature Control Panel

1、PID controller with SSR\SCR control mode for precise temperature control
2、International standard N-type nickel-chromium-silicon thermocouple, temperature range 0-1300 ℃, long service life

Program Controller

1、Advanced controllers for complex process needs
2、Simple and direct operation, flexible programming
3、Programmable 30 program segments for a single curve
4、Over temperature and fault alarm with automatic safety protection

Vacuum Atmosphere Function

1、The furnace tank body has adjustable air inlet and air outlet, which can be passed into the protective gas
2、Different vacuum pumps can be selected to obtain a vacuum degree of 500pa-0.06pa, and the digital vacuum gauge can display the vacuum degree
3、Optional air circuit control unit, the control unit can choose 1-3 adjustable float meter

Technical Parameter

Model

STZ-3-12

STZ-6-12

STZ-8-12

STZ-12-12

STZ-18-12

STZ-30-12

Chamber Size

(W xD xH)mm

150 x150x150

180x230x150

200x300x120

200 x300x200

250 x300x250

300 x500x200

Rated Temperature

1200℃

Work Temperature

1100℃

Power Supply

220V/2.5KW

220V/3KW

220V/3KW

220V/4KW

220V/6KW

220V/7.5KW

Heating Element

HRE Alloy Resistance Wire

Chamber Materials

Polycrystalline inorganic alumina ceramic fiber material made by wet vacuum filtration methord

Temp control Accracy

±1℃

Thermcouple

N Type  thermcouple

Temperature Controller

Intelligent microcomputer PID temperature control instrument, SCR/SSR control, PID parameter self-tuning function .Programmable 4 groups program curves with each program curve with 8 segments totally 32 segments for program heating, program heat preservation, program cooling

Heating Rate

1-25℃/min can be adjustable

Furnace Structure

Furnace temperature control integrated structure

Equipment Protection

 Modular control with sound and light alarm signal sending out for over temperature and thermocouple broken in the working process, and the protection action will be completed automatically

Safety Protection

The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators

Furnace Shell

High-quality cold-rolled steel plate with CNC machine tool processing, then it will have the process of welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder

Quality Certificate

ISO9001   CE    SGS   TUV

Standard Device

1、Furnace Main Body : 1 set   2、Temperature Controller : 1 pc  3、Power Line : 3 meters   4、Thermcouple : 1 pc  5、Operation manual ; 1 pc  6 Crucible Tong ; 1 pc   7、High Temperature Gloves : 1 pair

Optional Accessories

1、Optional with Rotary Vacuum Pump (Vacuum Degree Level ≤500pa)

2、Optional digital vacuum gauge (1.0×105-1.0×10-1pa)

3、Optional with gas float meter (Float flow rage 1-10L/min)

Accessory

1. Furnace body 1 set
2. Temperature controller 1
3. Power cord 3 meters 1
4. Thermocouple 1
5. Instruction manual 1
6. Crucible Tong 1
7. High temperature gloves  1 pair
