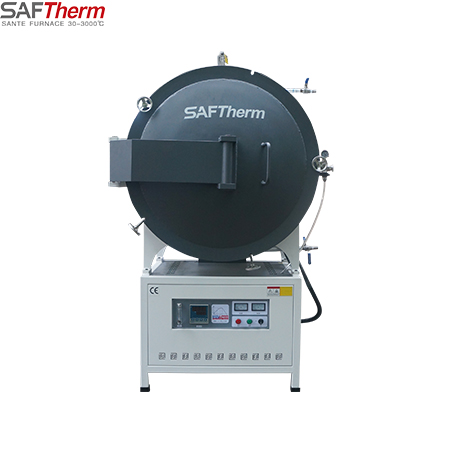

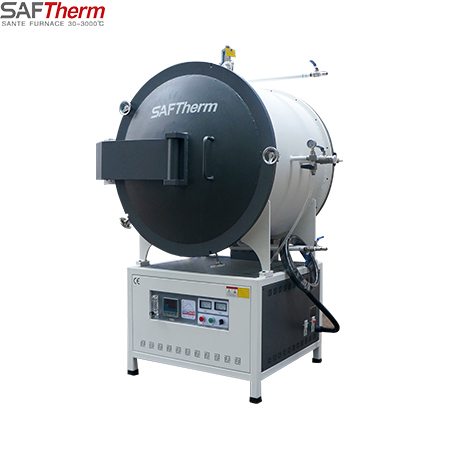

1700°C Vacuum Box Furnace

  • Model No. :STZ-36-17
  • Inner Dimension(WxDxH MM):300x400x300
  • Continuous Temp. :1600℃
  • Max Temp.:1700°C
  • Power Supply:380V/13kw
  • Heating Element: Molybdenum Disilicide(MoSi2)Heater
  • Temp Precision:±1°C
  • Thermocouple: B type
  • Advantage
  • Related Cases
  • Related Products
Free Quote

Description

The 1700°C vacuum atmosphere furnace can work under vacuum and protective atmosphere, and is widely used in the heat treatment of hard alloys, ceramics, powder metallurgy materials; it can also be used for vacuum quenching, annealing, high-speed steel, alloy abrasives, and brazing of soft magnetic materials and heat treatment of other materials.

Features

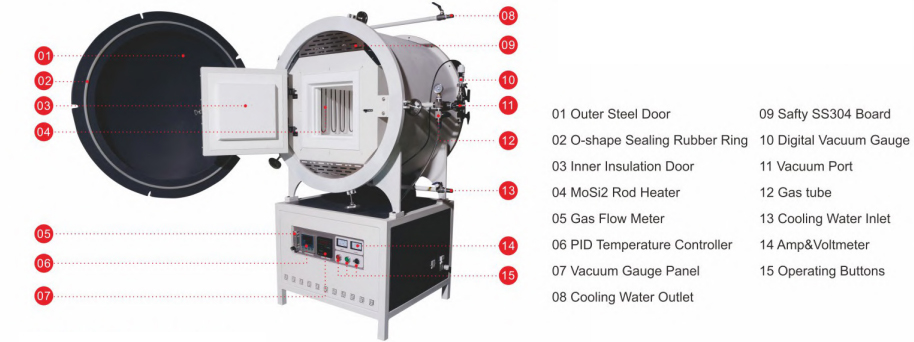

Furnace shell

1、The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and anti- corrosion.
2、 Sturdy metal tank shell structure with low furnace surface temperature
3、Furnace door with flange type sealing structure and manual screw compression with side door way for easier operating

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and other high-quality insulation board heat shielding backing, which does not contain asbestos components, low heat loss and low energy consumption

Heating system

1、High-quality Mosi2 rod heating element installed on both sides of the furnace safely and firmly with free heat radiation heating in the furnace chamber and energy saving and high efficiency for long service life
2、Heating element on both sides (left and right) for good uniformity in the furnace

Temperature Control Panel

1、PID with SSR control mode for precise temperature control
2、International standard B-type platinum rhodium thermocouple with temperature range 50-1800 ℃for long service life

Program Controller

1、Advanced controllers for complex process needs
2、Simple and direct operation, flexible programming
3、Programmable 30 segments
4、Over temperature and fault alarm with automatic safety protection

Vacuum Atmosphere Function

1、The furnace tank body has adjustable air inlet and air outlet, which can be passed into the protective gas
2、Different vacuum pumps can be selected to obtain a vacuum degree of 500pa-0.06pa, and the digital vacuum gauge can display the vacuum degree
3、Optional air circuit control unit, the control unit can choose 1-3 adjustable float meter

Technical Parameter

Model

STZ-1-17

STZ-3-17

STZ-8-17

STZ-12-17

STZ-20-17

STZ-36-17

STZ-45-17

Chamber Size

(W xD xH)mm

100 x120x100

150 x150x150

200x200x200

200x300x200

250 x320x250

300x400x300

300 x500x300

Rated Temperature

1700℃

Work Temperature

1600℃

Power Supply

220V/2KW

220V/4KW

220V/5KW

220V/6KW

220V/7KW

380V/13KW

380V/18KW

Heating Element

U Type Silicon molybdenum rod

Chamber Materials

Polycrystalline inorganic alumina ceramic fiber material made by wet vacuum filtration methord

Temp control Accracy

±1℃

Thermcouple

B Type Platinum Rhodium Thermocouple

Temperature Controller

Intelligent microcomputer PID temperature control instrument, SCR/SSR control, PID parameter self-tuning function .Programmable 30 program  segments for program heating, program heat preservation, program cooling

Heating Rate

1-10℃/min can be adjustable

Furnace Structure

Furnace temperature control integrated structure

Equipment Protection

 Modular control with sound and light alarm signal sending out for over temperature and thermocouple broken in the working process, and the protection action will be completed automatically

Safety Protection

The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators

Furnace Shell

High-quality cold-rolled steel plate with CNC machine tool processing, then it will have the process of welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder

Quality Certificate

ISO9001   CE    SGS   TUV

Standard Device

1、Furnace Main Body : 1 set   2、Temperature Controller : 1 pc  3、Power Line : 3 meters   4、Thermcouple : 1 pc  5、Operation manual ; 1 pc  6 Crucible Tong ; 1 pc   7、High Temperature Gloves : 1 pair

Optional Accessories

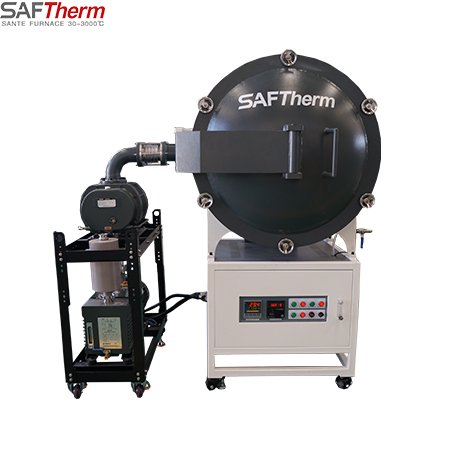

1 .Optional with Rotary Vacuum Pump (Vacuum Degree Level ≤500pa)

2.Optional digital vacuum gauge (1.0×105-1.0×10-1pa)

3.Optional with gas float meter (Float flow rage 1-10L/min)

Accessory

1. Furnace body 1 set
2. Temperature controller 1
3. Power cord 3 meters 1
4. Thermocouple 1
5. Instruction manual 1
6. Crucible Tong 1
7. High temperature gloves  1 pair
