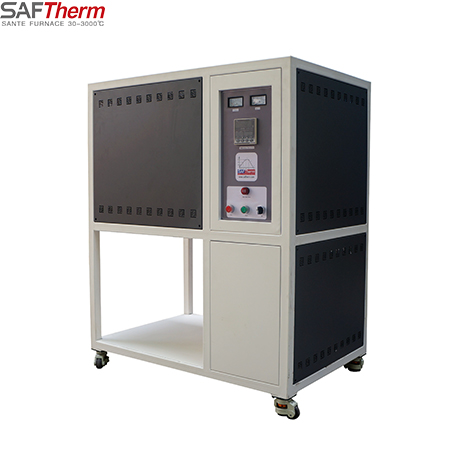

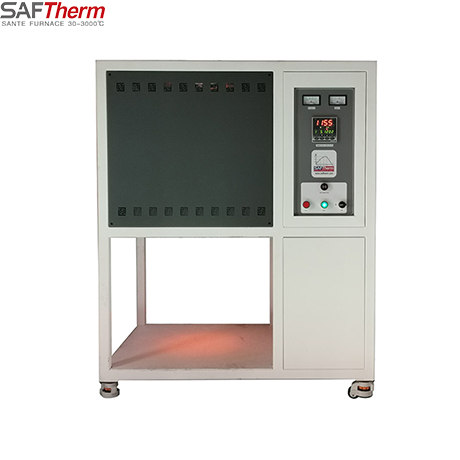

1700°C Glass Melting Furnace

  • Model No. :STRO-3-17
  • Quartz Tube(OD):Φ150x150mm
  • Continuous Temp. :1600℃
  • Max Temp.:1700°C
  • Power Supply:220V/3kw
  • Heating Element: Molybdenum Disilicide(Mosi2)heater
  • Thermocouple: N type
  • Advantage
  • Related Cases
  • Related Products
Free Quote


High Temperature Alminum/Glass/Gold/Metal/electric melting furnace with 1600C widely used in Ceramics,Metallurgy,electronics,glass,chemical machinery,reractory materials,development of new materials specialty materials,building materials and other fields of production and experimental.


Furnace shell

  1. The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
  2. The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low
  3. Vertical use mode, side open cover structure, easy to operate

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption

Heating system

  1. High-quality MoSi2 heating element, free heat radiation heating in the furnace cavity, energy saving and high efficiency, long service life
  2. The heating element is heated in a ring, so as to achieve good uniformity in the furnace
  3. You can choose the exhaust port on the top of the furnace, or the air inlet with adjustment on the bottom of the furnace.
  4. The charging container can be stacked on the bottom of the furnace, and two or three layers of materials can be placed in different furnace types

Temperature Control Panel

  1. PID with SSR/SCR control mode, precise temperature control
  2. Internationally standardized N-type nickel-chromium-silicon thermocouple with a temperature measurement range of 0-1300°C and a long service life
  3. The furnace door is equipped with a door-opening power-off safety protection switch

Program Controller

  1. Advanced controllers that meet complex process requirements
  2. Simple and direct operation, flexible programming
  3. Programmable 30 program segments for a single curve
  4. Over temperature and fault alarm, automatic safety protection


1. Furnace body 1 set
2. Temperature controller 1
3. Power cord 3 meters 1
4. Thermocouple 1
5. Instruction manual 1
6. Crucible pliers 1
7. High temperature gloves  1 pair


  • 1 Year Warranty We can provide very professional commercial support, technical support and document support
  • 22 Years Experience We have more than 22 years of experience in Electirc Heating Equipment,Excellent temperature field uniformity is our strength
  • R&D Design Team Professional design and development team, to provide you with professional and reasonable heat treatment solutions
  • Quality Control Rigorous quality control process, each process process traceable, to provide customers with high quality products
